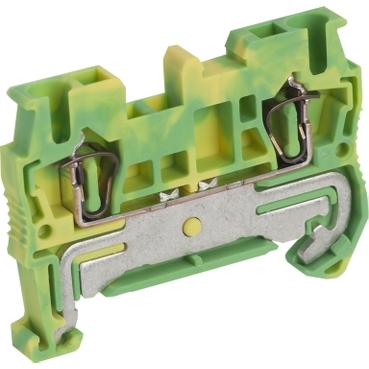

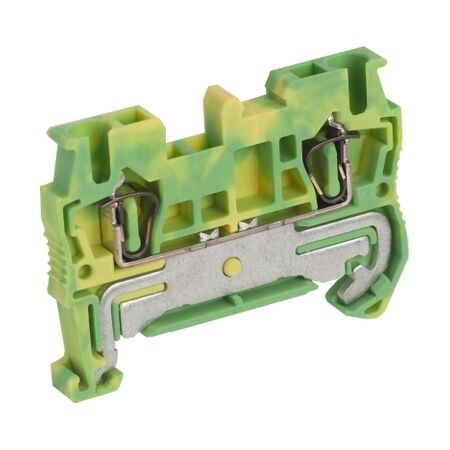

Spring Terminal Earth Block | Spring Clamp Technology | 800V Rated | Green-Yellow Color | @Each of 1 | by GAF
The Spring Terminal Earth Block features spring clamp technology for fast, tool-free wiring, making it ideal for electrical distribution panels and industrial control cabinets. With a clear green-yellow color for earth identification and a compact design, it ensures reliable and vibration-resistant connections, perfect for any application requiring secure earth connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Spring Terminal Earth Block | Spring Clamp Technology | 800V Rated | Green-Yellow Color | @Each of 1 | by GAF
Brand: GAF
SKU: SCHNSYTRR22PE
Alternatively Known As: Earth terminal block, DIN rail earth terminal, spring clamp earth terminal, green-yellow terminal block, Linergy earth terminal, SCHNSYTRR22PE
Technical Specifications
- Type: Earth terminal block
- Connection technology: Spring clamp
- Rated cross-section: 2.5mm²
- Number of levels: Single-level
- Number of connections: 1x1
- Color: Green-yellow (earth identification)
- Mounting: DIN rail
- Rated voltage: 800V
- Rated current: 24A
- Insulation material: Polyamide 6.6, self-extinguishing
- Operating temperature: -40°C to +120°C
- Dimensions (H x L x W): 45mm x 50mm x 6mm
- Weight: 0.1 kg
Key Features
- Spring clamp technology for fast, tool-free wiring
- Clear green-yellow color for earth/ground identification
- Single-level, compact design for space-saving installation
- Reliable and vibration-resistant electrical connection
- DIN rail mountable for easy integration into panels
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian electrical safety standards.
Applications
- Electrical distribution panels
- Industrial control cabinets
- Switchboards
- Building automation systems
- Any application requiring secure earth/ground connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Halogen-free insulation material reduces environmental impact
- Long service life minimizes replacement waste
- Tool-free wiring reduces installation energy and time
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
Available for immediate purchase. Ideal for use in electrical panels, switchboards, and industrial control systems requiring reliable earth connections.
