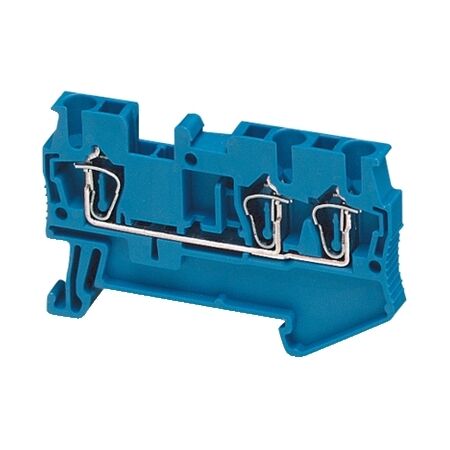

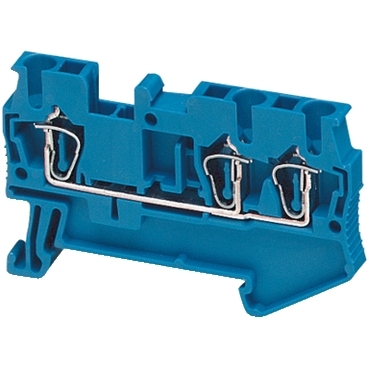

Spring Terminal Feed Through | 3 Connection Points | 2.5mm² Conductor Size | Blue Color | @Each of 1 | by Clipsal
The Spring Terminal Feed Through is designed for secure and maintenance-free connections, featuring 3 connection points and accommodating conductors up to 2.5mm². Ideal for industrial control panels and electrical distribution boards, this blue terminal block ensures easy circuit identification and is perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Spring Terminal Feed Through | 3 Connection Points | 2.5mm² Conductor Size | Blue Color | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYTRR23BL
Alternatively Known As: Terminal Block, Spring Terminal Block, Feed Through Terminal, Linergy TR Terminal, 2.5mm² Terminal Block, Blue Terminal Block
Technical Specifications
- Type: Spring terminal feed through block
- Series: Linergy TR
- Number of connection points: 3
- Conductor size: Up to 2.5mm²
- Color: Blue
- Mounting: DIN rail
- Rated voltage: 800V
- Rated current: 24A
- Material: Polyamide housing
- Operating temperature: -40°C to +120°C
- Dimensions (H x L x W): 44mm x 36mm x 5mm
- Weight: 0.1 kg
Key Features
- Spring terminal technology for secure and maintenance-free connections
- Feed through terminal block design
- Accommodates 2.5mm² conductors
- 3 connection points
- Blue color for easy circuit identification
- Compact and modular for easy DIN rail mounting
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with Australian standards and optimal performance.
Applications
- Industrial control panels
- Electrical distribution boards
- Automation systems
- Switchboards
- General electrical installations requiring secure wire connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60947 – Low-voltage switchgear and controlgear
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Maintenance-free design minimizes waste and extends product life
Warranty Information
1 year manufacturer's warranty against defects.
Available Now
The Clipsal Linergy TR Spring Terminal Feed Through 3 Points 2.5mm² Blue is available for immediate purchase. Ideal for industrial, commercial, and automation electrical installations.
