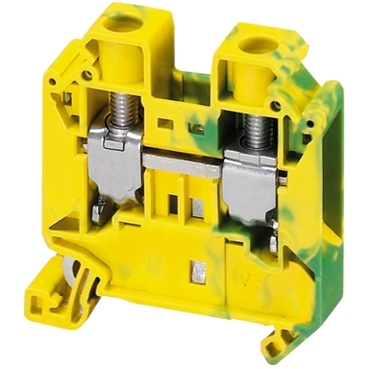

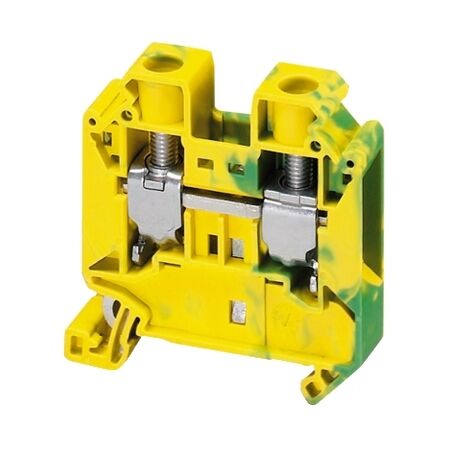

Spring Terminal Protective EA | Spring Clamp Connection | 800V Rated | Compact Design | by Clipsal
The Spring Terminal Protective EA is a reliable spring terminal block designed for protective earth (PE) applications. With a secure spring clamp connection and rated for 800V and 24A, it ensures safe grounding in electrical distribution boards and control panels. Ideal for licensed electricians, this compact design allows for tool-free wire insertion, making installation quick and efficient.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Spring Terminal Protective EA | Spring Clamp Connection | 800V Rated | Compact Design | by Clipsal
Brand: Clipsal
SKU: SCHNSYTRR162PE
Alternatively Known As: Spring Clamp Terminal Block, Earth Terminal Block, PE Terminal, DIN Rail Earth Terminal, Clipsal Earth Spring Terminal
Technical Specifications
- Type: Spring terminal block
- Function: Protective earth (PE)
- Connection method: Spring clamp
- Mounting: DIN rail
- Rated voltage: 800V
- Rated current: 24A
- Wire size: 0.2–4 mm² (solid/stranded)
- Housing material: Polyamide (PA66), flame retardant
- Color: Green/yellow (PE standard)
- Dimensions (H x L x W): 45mm x 60mm x 6mm
- Weight: 0.1 kg
Key Features
- Spring clamp connection for secure and maintenance-free wiring
- Protective earth (PE) terminal for safe grounding
- Tool-free wire insertion for quick installation
- High contact reliability and vibration resistance
- Compact design for space-saving installation
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian electrical standards and safety.
Applications
- Electrical distribution boards
- Industrial control panels
- Commercial and residential wiring systems
- Switchboards and enclosures
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Lead-free and RoHS compliant materials
- Reduces maintenance and replacement waste due to durable design
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Spring Terminal Protective EA SCHNSYTRR162PE is available for immediate purchase. Ideal for use in electrical panels, switchboards, and control systems requiring reliable earth connections.
