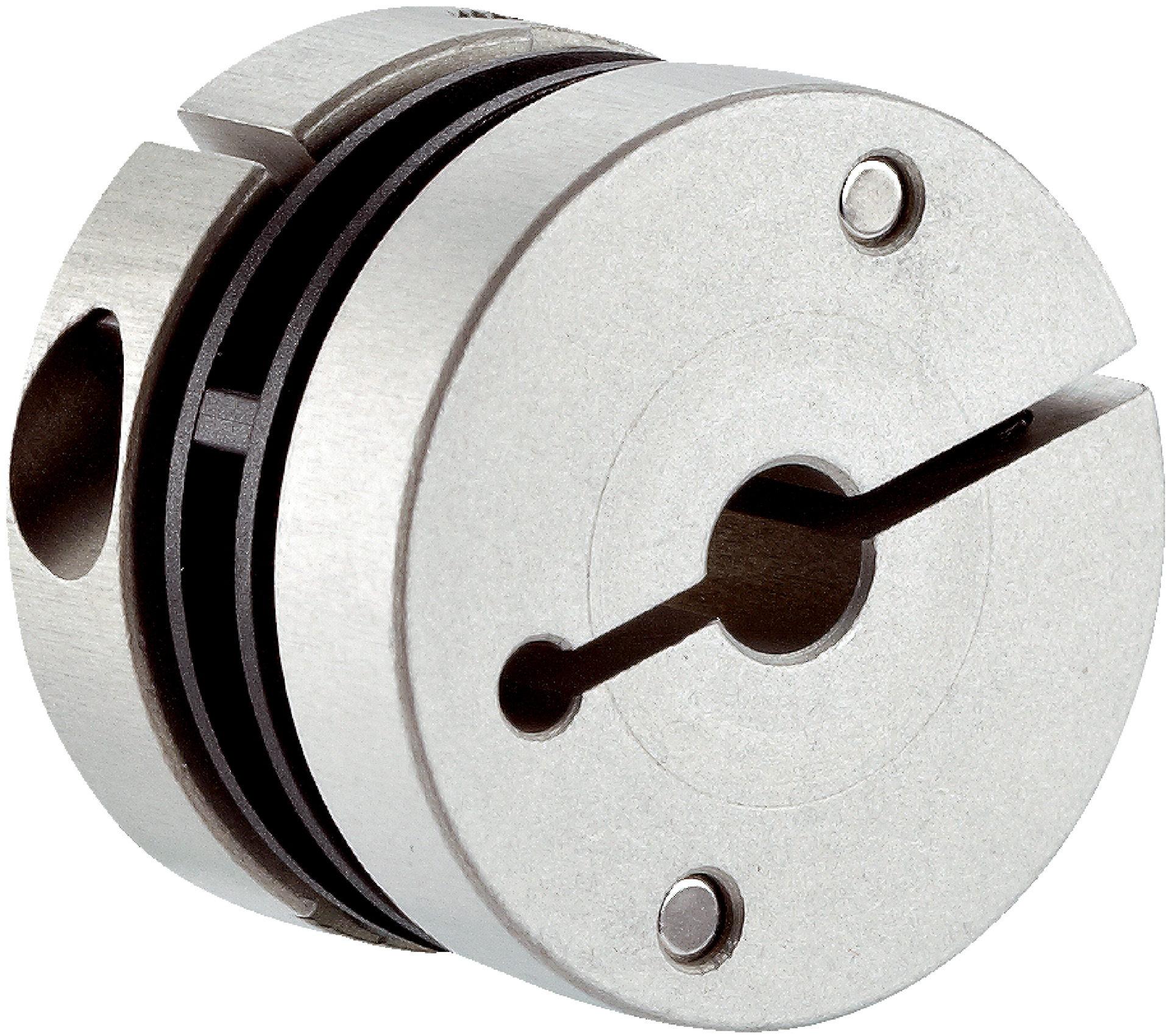

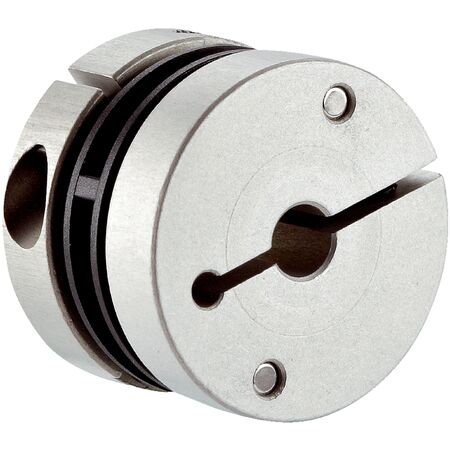

Spring Washer Coupling KUP-0606-F | 6mm Shaft Diameter | Max Speed 12,000 RPM | Torsional Stiffness 30 Nm/rad | by SICK

BRAND: SICK
SKU: 5313773
$116.90 List price: $146.90
+ −
30 Days Return Delivery Options
The Spring Washer Coupling KUP-0606-F is designed for precise mechanical shaft coupling in industrial machinery, featuring a 6mm shaft diameter and a maximum speed of 12,000 RPM. With a torsional spring stiffness of 30 Nm/rad and an operating temperature range of -10 to +80 °C, it's perfect for automation and control systems requiring accurate shaft alignment and performance.
Technical Specifications
  • Shaft diameter: 6 mm / 6 mm
  • Max shaft offset: radially +/- 0.3 mm, axially +/- 0.4 mm, angle +/- 2.5 degrees
  • Max speed: 12,000 rpm
  • Operating temperature: -10 to +80 °C
  • Torsional spring stiffness: 30 Nm/rad
  • Dimensions (H x L x W): 20mm x 30mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Spring washer coupling design
  • Shaft diameter 6 mm / 6 mm
  • Max shaft offset: radially +/- 0.3 mm, axially +/- 0.4 mm, angle +/- 2.5 degrees
  • Max speed 12,000 rpm
  • Operating temperature range: -10 to +80 degrees Celsius
  • Torsional spring stiffness of 30 Nm/rad
Professional Installation Requirements
  • Installation by a qualified technician or engineer is recommended to ensure proper shaft alignment and coupling performance.
Applications
  • Mechanical shaft coupling for industrial machinery
  • Shaft adaptation in automation and control systems
  • Use in equipment requiring precise shaft alignment and torsional stiffness
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Supports efficient mechanical operation, potentially reducing energy consumption
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK KUP-0606-F spring washer shaft coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
