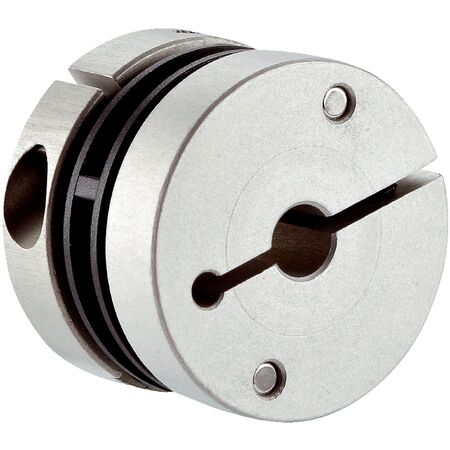

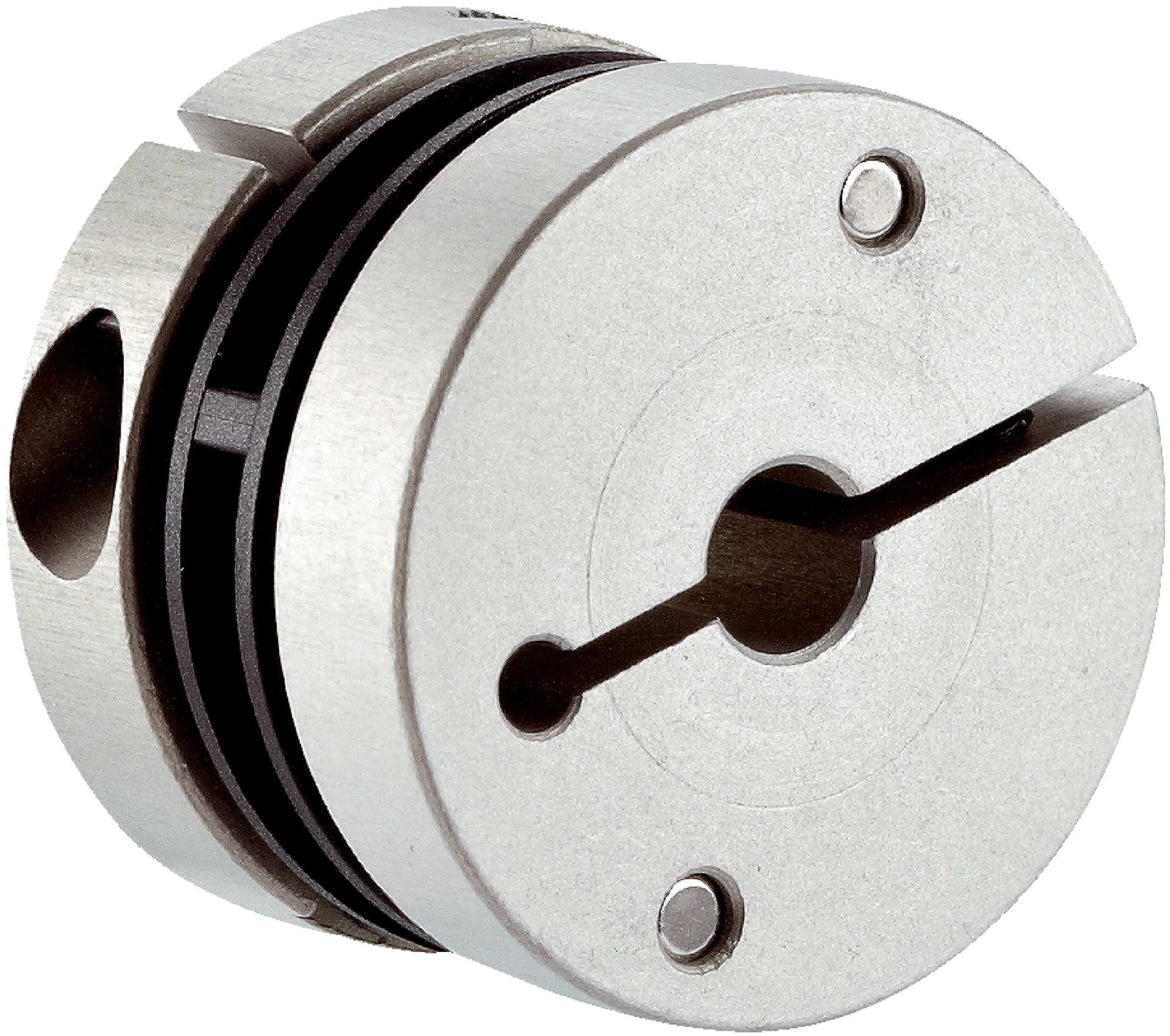

Spring Washer Coupling KUP-1010-F | 10mm Shaft Diameter | 12,000 RPM Max Speed | 60 Ncm Torque | by SICK
The Spring Washer Coupling KUP-1010-F is designed for effective shaft adaptation in industrial machinery, featuring a 10mm shaft diameter and a maximum speed of 12,000 RPM. With a torsion spring stiffness of 30 Nm/rad and a maximum torque of 60 Ncm, it compensates for shaft misalignment, making it ideal for precision equipment and mechanical power transmission systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 10 mm / 10 mm
- Maximum shaft offset: radial ±0.3 mm, axial ±0.4 mm, angular ±2.5°
- Torsion spring stiffness: 30 Nm/rad
- Maximum speed: 12,000 rpm
- Operating temperature: -10° to +80 °C
- Maximum torque: 60 Ncm
- Materials: aluminum flange, glass-fiber reinforced polyamide membrane, hardened steel coupling pin
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Spring washer coupling design
- Shaft diameter 10 mm / 10 mm
- Maximum shaft offset: radial ±0.3 mm, axial ±0.4 mm, angular ±2.5°
- Torsion spring stiffness of 30 Nm/rad
- Maximum speed up to 12,000 rpm
- Operating temperature range from -10° to +80 °C
- Maximum torque 60 Ncm
- Constructed with aluminum flange, glass-fiber reinforced polyamide membrane, and hardened steel coupling pin
Professional Installation Requirements
- Installation by qualified mechanical technician recommended to ensure proper alignment and torque settings.
Applications
- Industrial machinery shaft adaptation
- Mechanical power transmission systems
- Precision equipment requiring shaft misalignment compensation
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Efficient mechanical coupling reduces energy loss in power transmission
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KUP-1010-F spring washer shaft coupling is available for immediate purchase, ideal for industrial and mechanical shaft adaptation applications.
