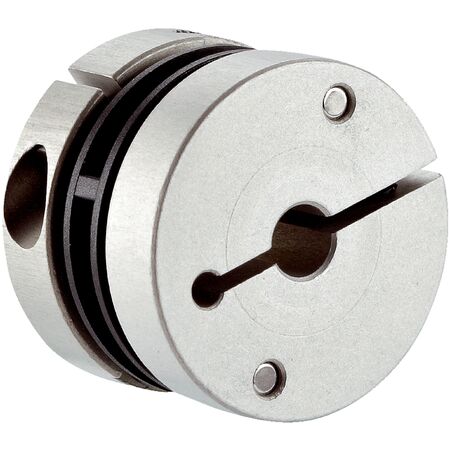

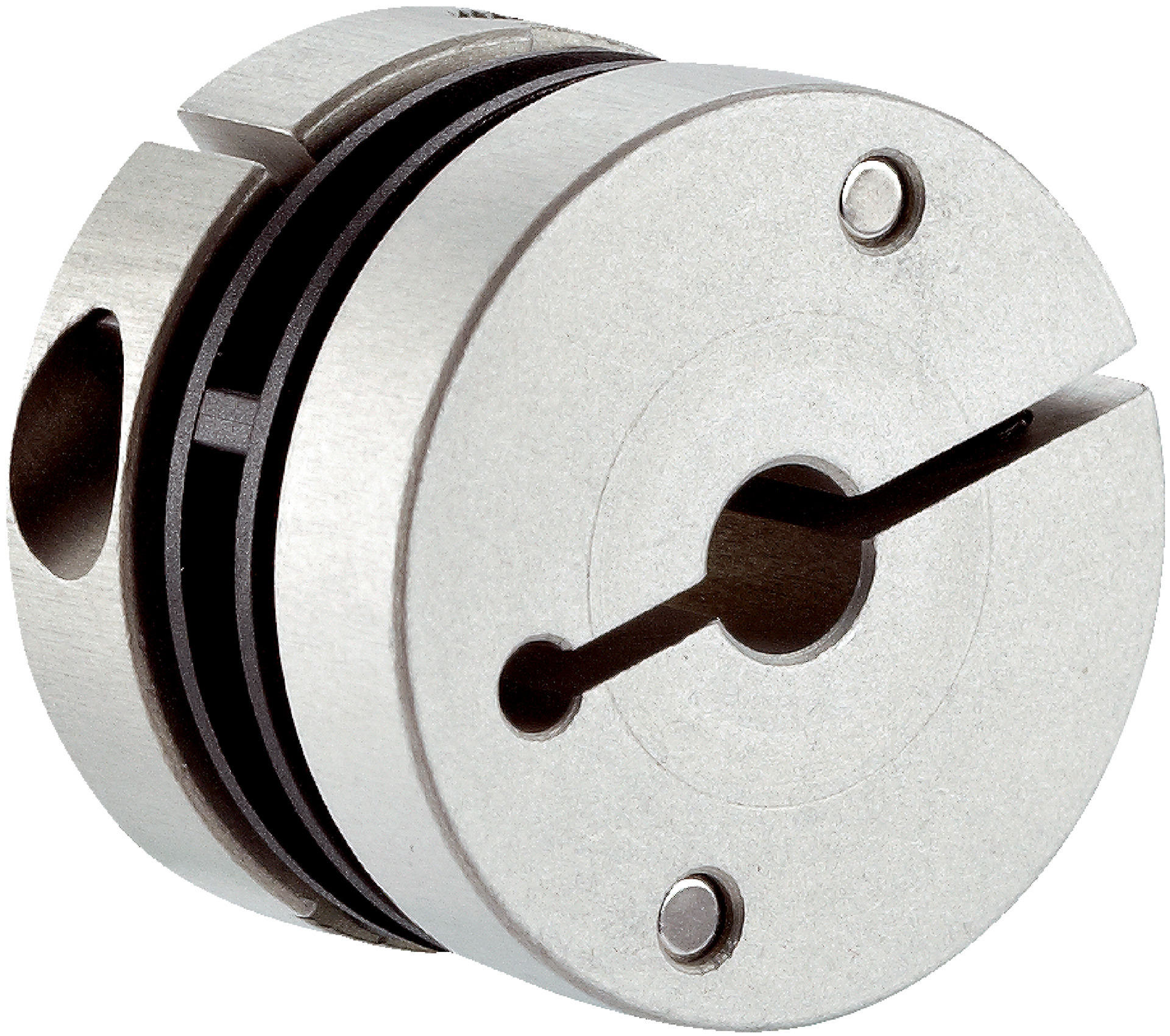

Spring Washer Shaft Coupling | 6mm to 10mm Adaptation | 12,000 RPM Max Speed | by SICK

BRAND: SICK
SKU: 5312985
$116.90 List price: $146.90
+ −
30 Days Return Delivery Options
The Spring Washer Shaft Coupling is designed for seamless mechanical shaft adaptation, accommodating diameters of 6 mm and 10 mm. With a maximum speed of 12,000 rpm and a robust construction featuring an aluminum flange and hardened steel coupling pin, it's perfect for high-speed industrial machinery. Ideal for qualified technicians, this coupling ensures efficient performance and durability in demanding applications.
Technical Specifications
  • Shaft diameter: 6 mm / 10 mm
  • Maximum shaft offset: radial +/- 0.3 mm, axial +/- 0.4 mm, angular +/- 2.5°
  • Maximum speed: 12,000 rpm
  • Operating temperature: -10° to +80 °C
  • Maximum torque: 60 Ncm
  • Material: aluminum flange, glass fiber-reinforced polyamide membrane, hardened steel coupling pin
  • Dimensions (H x L x W): 40mm x 40mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Spring washer coupling design
  • Maximum shaft offset: radial +/- 0.3 mm, axial +/- 0.4 mm, angular +/- 2.5°
  • Maximum speed up to 12,000 rpm
  • Operating temperature range from -10° to +80 °C
  • Maximum torque of 60 Ncm
  • Constructed with aluminum flange, glass fiber-reinforced polyamide membrane, and hardened steel coupling pin
Professional Installation Requirements
  • Installation should be performed by qualified mechanical technicians to ensure proper shaft alignment and secure coupling.
Applications
  • Mechanical shaft adaptation in industrial machinery
  • Coupling shafts with diameters 6 mm and 10 mm
  • High-speed rotational equipment up to 12,000 rpm
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste
  • Efficient mechanical coupling reduces energy loss in shaft transmissions
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK KUP-0610-F Spring Washer Shaft Coupling is available for immediate purchase, ideal for industrial shaft adaptation applications.
