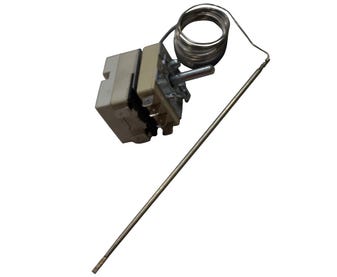

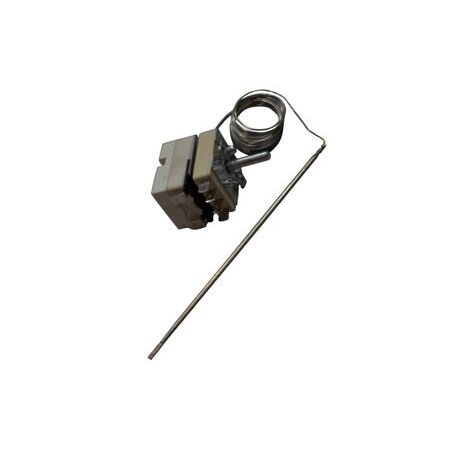

SPST Thermostat 50-320°C | 16A Rating | Easy Installation & Reliable Control by Cabac
This SPST thermostat operates within a 70-399°C range, providing reliable temperature control—ideal for HVAC systems and industrial applications. Built for ease of use, with straightforward installation for quick setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermostat SPST 70-399°C | Reliable Temperature Control | Easy Installation by RC9
Brand: Cabac
SKU: EF55.13664.080
Alternatively Known As: Cooking Thermostat, Temperature Control Switch, Oven Thermostat, SPST Thermostat Switch
Technical Specifications
- Temperature range: 50-320°C
- SPST break on temperature rise
- Switch rating: 16A 240V
- Capillary length: 1430mm
- Sensor size: 147 x 3mm
- Start angle: 87 degrees
- Rotation: 310 degrees
- 2 pole shaft mounted 16A fan switch
- Dimensions (H x L x W): 50mm x 150mm x 150mm
- Weight: 0.3 kg
Key Features
- Temperature range: 50-320°C
- Single pole single throw (SPST) thermostat
- Shaft mounted switch with 16A 240V rating
- Capillary length: 1430mm
- Sensor dimensions: 147 x 3mm
- Start angle: 87 degrees
- Rotation angle: 310 degrees
- SPST breaks on temperature rise
- 2 pole shaft mounted 16A fan switch included
Professional Installation Requirements
- Installation by a qualified appliance technician or electrician is recommended to ensure safety and proper operation.
Applications
- Cooking appliances requiring temperature control
- Ovens, stoves, and other kitchen equipment
- Appliance repair and maintenance
Standards & Compliance
- AS/NZS 60335 – Safety of household and similar electrical appliances
Environmental Benefits
- Helps maintain efficient appliance operation reducing energy waste
- Durable design reduces replacement frequency and waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Thermostat 70-399 DEG C SPST + Shaft Mounted Switch RC9 is available for immediate purchase, ideal for cooking appliance repairs and replacements.
