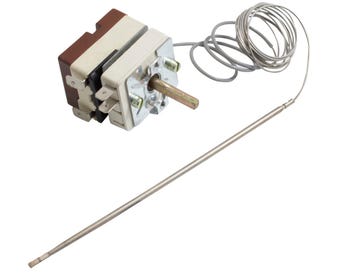

SPST Thermostat 50-320°C | 16A Rating | Shaft Mounted & Easy Installation by Cabac
This SPST thermostat operates within a 50-320°C range, providing reliable temperature control—ideal for HVAC systems and industrial applications. Built for ease of use, with straightforward installation for quick setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

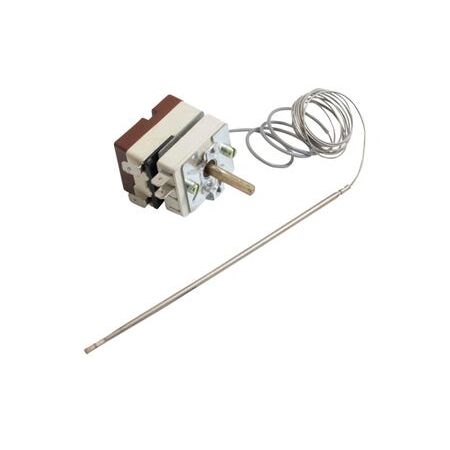

Product Name/Title: Thermostat SPST 50-320°C | Reliable Temperature Control | Easy Installation by Matchmaster
Brand: Cabac
SKU: EF55.13664.070
Alternatively Known As: Cooking Thermostat, Temperature Control Switch, Oven Thermostat, SPST Thermostat
Technical Specifications
- Temperature range: 50-320°C
- Switch type: SPST (Single Pole Single Throw)
- Switch rating: 16A at 240V
- Capillary length: 1470mm
- Sensor dimensions: 160 x 3mm
- Start angle: 85 degrees
- Rotation angle: 310 degrees
- Shaft mounted switch with calibrated knob
- Dimensions (H x L x W): 50mm x 1500mm x 50mm
- Weight: 0.2 kg
Key Features
- Temperature range from 50 to 320 degrees Celsius
- Single pole single throw (SPST) switch
- Shaft mounted switch with calibrated knob to suit EF52
- 16A 240V rating for reliable operation
- Capillary length of 1470mm with 160 x 3mm sensor
- Start angle 85 degrees and rotation 310 degrees
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper connection and safety.
Applications
- Cooking appliances requiring temperature control
- Replacement part for ovens, stoves, and other cooking equipment
Standards & Compliance
- AS/NZS 60335 – Safety of household and similar electrical appliances
Environmental Benefits
- Helps maintain efficient energy use by precise temperature control
- Durable design reduces waste through long service life
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Thermostat 50-320 DEG C SPST with shaft mounted switch is available now for immediate purchase. Ideal for cooking appliance repairs and replacements.
