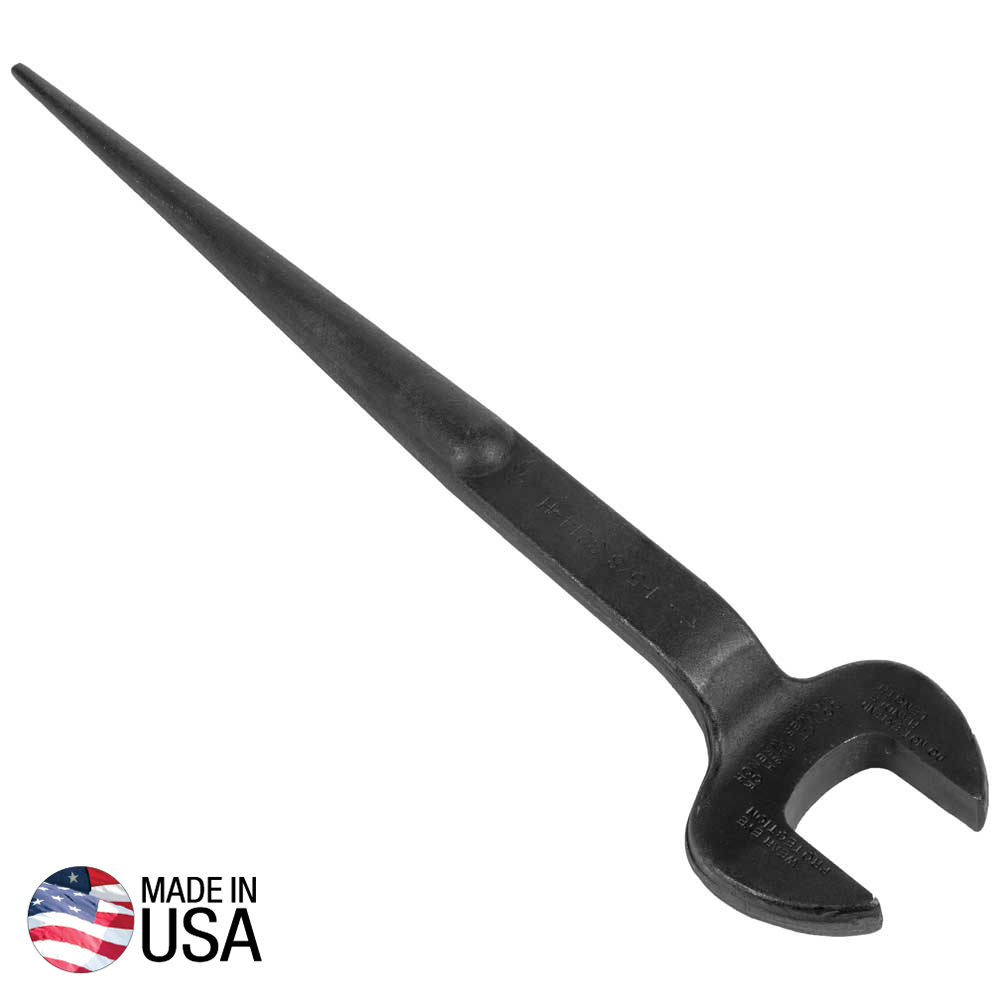

Spud Spanner | 4.1 cm Nominal Opening | Heavy Duty Alloy Steel | Black Oxide Finish | by Wattmaster
The Spud Spanner with a 4.1 cm nominal opening is designed for heavy-duty applications, making it ideal for connecting steel members in construction. Crafted from select US alloy steel, it features an extra heavy-duty head for maximum strength and a black oxide finish that prevents rust, ensuring durability and longevity in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Spud Spanner | 4.1 cm Nominal Opening | Heavy Duty Alloy Steel | Black Oxide Finish | by Wattmaster
Brand: Wattmaster
SKU: A-3214
Alternatively Known As: Spud Wrench, Heavy Duty Spanner, Construction Spanner, Alloy Steel Spud Wrench
Technical Specifications
- Nominal Opening: 4.1 cm (1-5/8 inch)
- Material: Select US alloy steel
- Finish: Black oxide with rust preventative
- Overall Length: 457 mm (18 inches)
- Overall Width: 91 mm (3.6 inches)
- Overall Height: 25 mm (1 inch)
- Head Width: 92 mm (3.625 inches)
- Taper Diameter: 29 mm to 6 mm (1-1/8 inch to 1/4 inch)
- Offset Angle: 60 degrees
- Nut Type: US heavy
- Heavy Nut Size: 25 mm (1 inch)
- Dimensions (H x L x W): 25mm x 457mm x 91mm
- Weight: 1.5 kg
Key Features
- Forged from select US alloy steel to withstand high-leverage and heavy loads
- Extra heavy-duty head area for maximum strength and durability
- Continuously tapering handle for easy lining-up of bolt holes
- Extra-large hub area works on larger-diameter holes better than other spanners

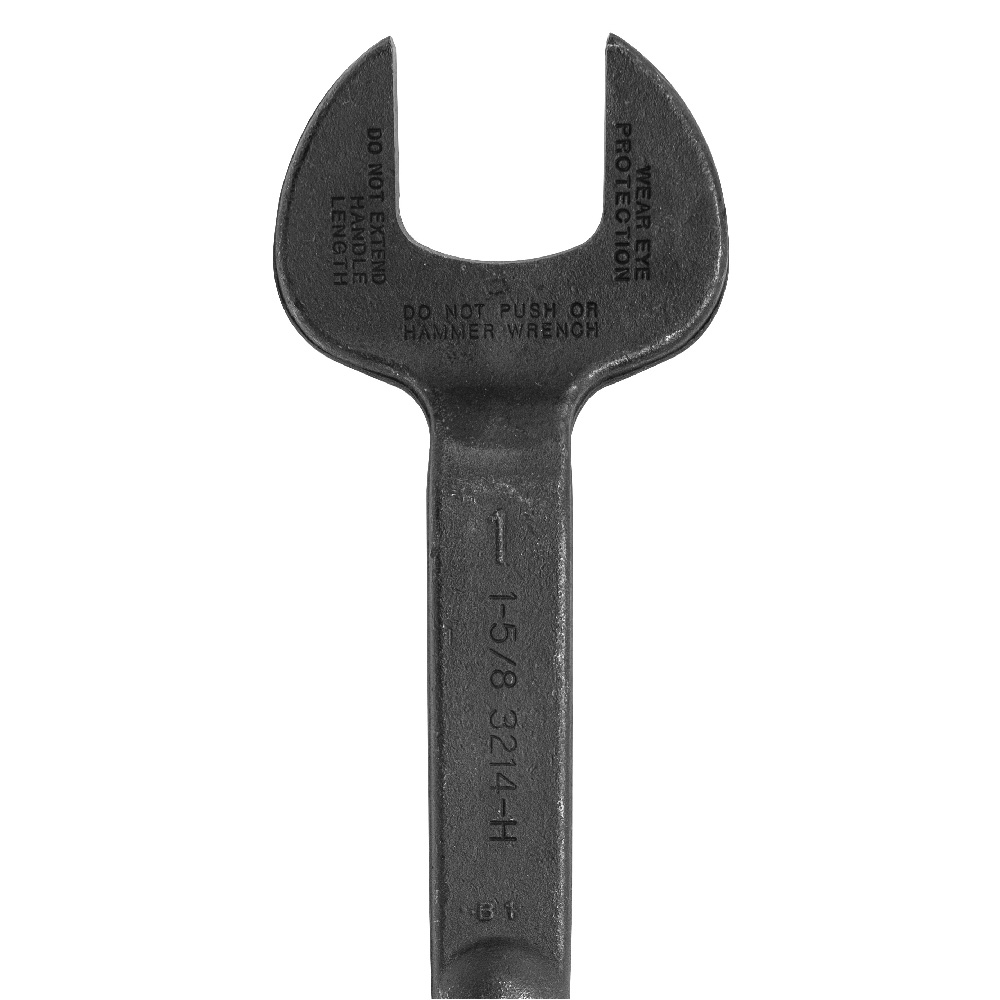

- Catalogue number, bolt size, and nominal opening size stamped on every wrench for easy identification
- American Bridge design
Professional Installation Requirements
- No professional installation required. Use with appropriate safety gear including approved eye protection. Do not push, hammer, or extend handle length.
Applications

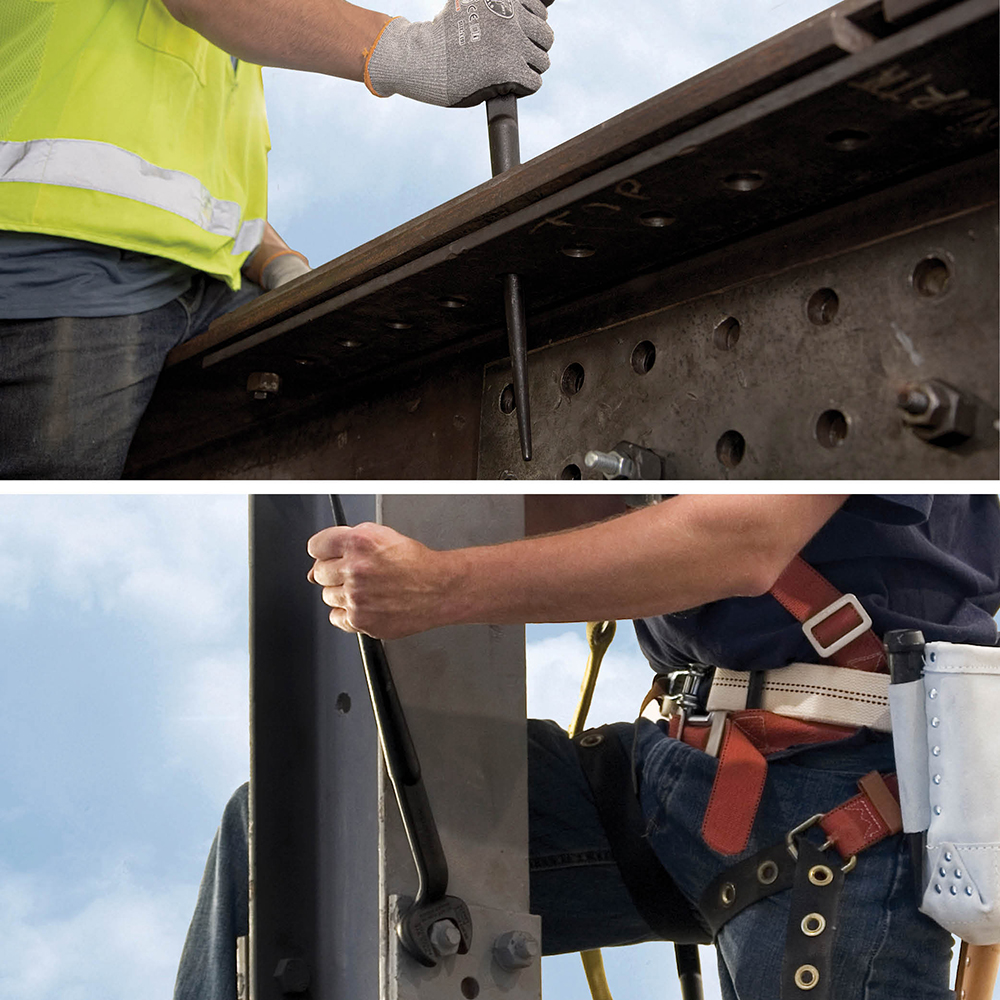

- Connecting steel members in construction and heavy-duty applications
- Use with 1” bolts and US heavy nut types
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable alloy steel construction reduces the need for frequent replacements, minimizing waste
- Black oxide finish with rust preventative extends tool life, reducing environmental impact
Warranty Information
Standard manufacturer warranty against defects applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Spud Spanner 4.1 cm Nominal Opening for Heavy Nuts is available for immediate purchase. Ideal for construction and heavy-duty steel member connections.
