Spyda 1250/1400mm 3 Speed RF Fan Remote Kit Ventair
Spyda 3 Speed RF Remote Control Kit with Step Dimmable Function Suited for All Spyda 50" and 56" Includes Hand Piece & Receiver by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Spyda Remote Control Kit, SPYRFR5056 Remote and Receiver, Spyda Ceiling Fan RF Controller
Technical Specifications
- Model: SPYRFR5056
- Compatibility: Ventair Spyda 50 and Spyda 56 AC ceiling fans
- Fan Control: Three speeds - Eco, Medium and High
- Remote Technology: Radio frequency for long-range operation
- Light Control: Four-step dimming from 25% to 100%
- Rated Power: 100 W
- Rated Voltage: 240 V AC
- Rated Frequency: 50 Hz
- Batteries: 2 x AAA included
- Connections: Quick-connect terminals

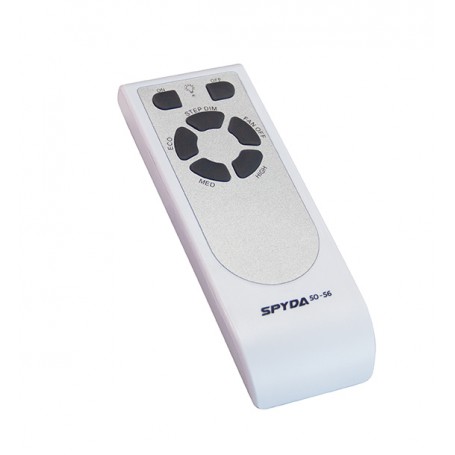

- Contents: Remote handpiece, receiver and two AAA batteries
- Dimensions (H x L x W): 70mm x 200mm x 120mm
- Weight: 0.32 kg
Key Features
- Designed for Ventair Spyda 1250mm and 1400mm AC ceiling fans
- Provides three selectable fan speeds
- Includes four-step dimmable light control for compatible fan light models
- Radio-frequency operation supports convenient remote control
- Complete kit includes the handpiece and receiver
- Quick-connect wiring simplifies connection during installation
- Factory-paired remote and receiver supplied
Professional Installation Requirements
- Installation must be performed by a qualified and licensed electrician. Fixed wiring must include an all-pole disconnection switch in accordance with applicable Australian Wiring Rules and fan safety requirements.
Applications
- Replacement remote control for compatible Ventair Spyda 50 ceiling fans
- Replacement remote control for compatible Ventair Spyda 56 ceiling fans
- Retrofitting remote operation to compatible Spyda AC ceiling fans
- Remote fan-speed and light-level control in residential, commercial and covered outdoor settings
Standards & Compliance
- AS/NZS 60335.2.80 for safety requirements applying to electric fans and separate fan controls
- AS/NZS 60335.1 for general household and similar electrical appliance safety
- AS/NZS 3000 for electrical installation and fixed-wiring requirements
Environmental Benefits
- Extends the usable life of compatible ceiling fans by providing a replacement control system
- Supports continued use of existing fan equipment, reducing premature replacement and electronic waste
- Low-power radio control operation minimises energy use during standby and control functions
Warranty Information
1-year limited warranty for the Ventair remote control kit. Warranty applies subject to Ventair conditions and qualified electrician installation requirements; commercial applications are limited to a 1-year warranty period.
Available Now
Available through authorised Ventair distributors in Australia.
