Spyda 1570mm 3 Blade Ceiling Fan LED Bamboo Ventair

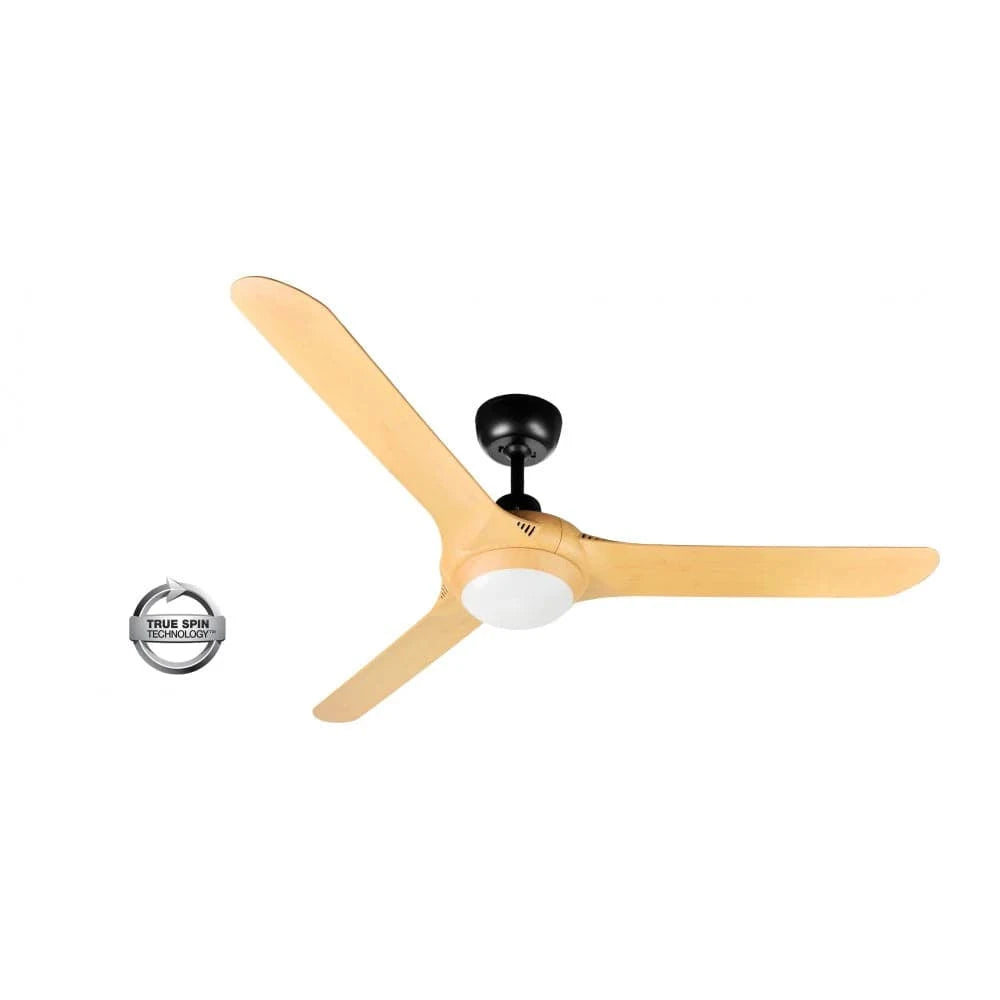

62"/1570mm Fully Moulded PC Composite 3 Blade Ceiling Fan in Bamboo with Tri-Colour Step Dimmable LED Light by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Spyda 62-inch Ceiling Fan, Ventair SPY1573BAM-L, Spyda Bamboo Ceiling Fan with LED
Technical Specifications
- Model: SPY1573BAM-L
- Motor Type: AC True Spin Technology
- Input Voltage: 240-265V AC
- Frequency: 50Hz
- Motor Power: 100W high, 62W medium, 27W low
- Air Movement: 15,300 / 10,560 / 6,720 m³/h high, medium and low
- Speed: 200 / 150 / 90 rpm high, medium and low
- Blade Count: 3
- Blade Material: Fully moulded polycarbonate composite
- Blade Pitch: High, curved blade
- Light Type: LED panel
- Light Power: 20W
- Light Output: 2,050 lumens
- Colour Temperature: Warm 3,000K, natural 4,200K and cool 6,500K
- Dimming: Four steps from 100% to 25%
- Control: Three-speed wall controller included
- Remote Compatibility: SPYRFR62 RF remote control compatible
- Rotation: Reversible summer and winter airflow
- Mount Angle: 0-18 degrees
- Operating Environment: Indoor and fully covered outdoor areas
- Dimensions (H x L x W): 406mm x 1570mm x 1570mm
- Weight: 7.65 kg
Key Features
- Large 1570mm, 62-inch sweep for effective air circulation
- Durable UV-protected and corrosion-resistant components
- Precision-moulded polycarbonate composite blades for balanced operation
- True Spin AC motor technology with low-noise operation
- Reversible airflow for summer and winter use
- ECO switch setting for reduced running costs
- Integrated tri-colour LED light with four-step dimming
- Quick-connect wiring and quick-fix assembly
- Three-speed wall controller included
- Compatible with optional SPYRFR62 RF remote control
Professional Installation Requirements
- Installation must be completed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions. An all-pole disconnection switch must be incorporated into the fixed wiring, and the fan blades must be installed at least 2.1m above the floor in Australia.
Applications
- Residential living rooms, bedrooms and open-plan areas
- Covered patios, verandahs and alfresco areas
- Commercial indoor spaces with suitable ceiling mounting
- Large rooms requiring high-volume air circulation
Standards & Compliance
- AS/NZS 60335.2.80, Household and similar electrical appliances safety requirements for fans
- AS/NZS 3000, Australian and New Zealand Wiring Rules for electrical installation
Environmental Benefits
- ECO switch setting can reduce operating energy consumption while maintaining useful air circulation
- Reversible airflow supports seasonal comfort and may reduce reliance on mechanical cooling or heating
- Durable UV-protected components and long-life Japanese bearings can reduce replacement frequency and material waste
- Polycarbonate composite components offer a durable alternative to timber blades in covered outdoor applications
Warranty Information
Six-year warranty against manufacturing defects, comprising two years of in-home warranty followed by four years of parts-only motor warranty. The LED panel and remote control components are covered for one year. Commercial installations are covered for a maximum of one year.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
