Spyda 1573mm 3 Speed RF Fan Remote Kit Ventair

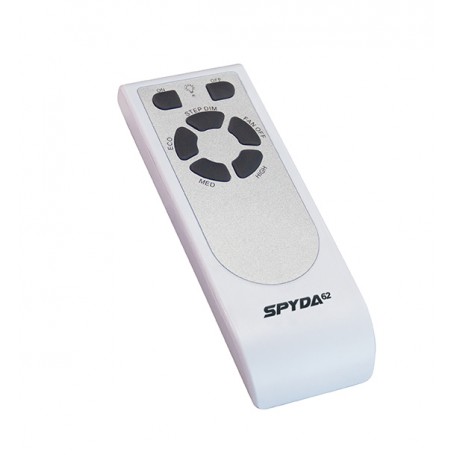

Spyda 3 Speed RF Remote Control Kit with Step Dimmable Function Suited for the Spyda 62"- Includes Hand Piece & Receiver by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair SPYRFR62 Remote Kit, Spyda 1570mm Fan Remote, Spyda Ceiling Fan RF Controller
Technical Specifications
- Model: SPYRFR62
- Compatibility: Ventair Spyda 62-inch or 1570mm AC ceiling fans
- Control Type: Radio frequency remote control
- Fan Speeds: Three
- Light Control: Four-step dimming function
- Rated Power: 100 W
- Rated Voltage: 240 V AC, 50 Hz
- Battery Requirement: 2 x AAA batteries
- Included Components: Remote handpiece, receiver and batteries
- Connection: Quick-connect terminals
- Dimensions (H x L x W): 35mm x 190mm x 165mm
- Weight: 0.26 kg
Key Features
- Three-speed fan control
- Long-range radio frequency operation
- Four-step dimmable light control
- Receiver included for retrofit installation
- Quick-connect terminals simplify wiring
- Designed specifically for compatible Ventair Spyda 62-inch AC ceiling fans
- Suitable for replacement and retrofit applications
Professional Installation Requirements
- Installation involves mains electrical wiring and must be completed by a licensed electrician in accordance with the supplied wiring instructions, AS/NZS 3000 and applicable state or territory electrical requirements. An all-pole disconnection switch must be included in the fixed wiring.
Applications
- Replacement remote control for compatible Ventair Spyda 62-inch ceiling fans
- Remote operation of three fan speeds
- Four-step dimming of compatible Spyda fan lights
- Retrofit control for existing compatible Spyda AC fan installations
Standards & Compliance
- AS/NZS 60335.2.80 for safety requirements applying to electric fans and separate controls supplied with fans
- AS/NZS 3000 for the electrical installation of the mains-wired receiver and fan control circuit
Environmental Benefits
- Four-step light dimming can reduce electricity consumption when full brightness is not required
- Extends the service life of compatible ceiling fans by allowing replacement of the control system rather than the complete fan
- Compact replacement design can reduce electronic waste compared with replacing a complete ceiling fan
Warranty Information
1-year warranty against manufacturing defects. Commercial applications are subject to Ventair's commercial warranty conditions.
Available Now
Available through authorised Ventair distributors in Australia.
