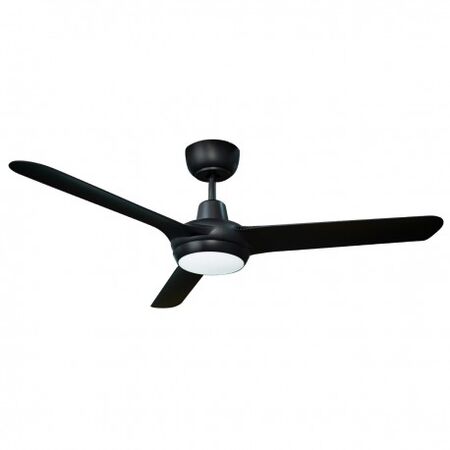

Spyda DC 1250mm 3 Blade Ceiling Fan 20W LED Black Ventair
Spyda DC 50"/1250mm Energy Saving DC 3 Blade Ceiling Fan with Light with 20W Tri-Colour Light Black by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Spyda DC SPYDC1253BL-L, 50-inch DC ceiling fan with light, 1250mm 3-blade ceiling fan
Technical Specifications
- Model Number: SPYDC1253BL-L
- Colour: Black
- Motor Type: DC
- Motor Power: 6-25W
- Maximum Air Movement: 12,600 m³/h
- Maximum Speed: 240 RPM
- Blade Count: 3
- Blade Material: Polycarbonate composite
- Blade Pitch: 23° curved blade
- Light Type: Integrated LED panel
- Light Power: 20W
- Light Output: 1,990 lumens average
- Colour Temperature: 3000K warm, 4000K natural, 6000K cool white
- Light Function: Dimmable tri-colour LED
- Control: 3-speed wall controller included
- Optional Control: Vario SDCRC six-speed remote with timer, sold separately
- Reverse Mode: Yes
- Suitable Ceiling Angle: Up to 18°
- Power Input: 220-240V, 50Hz
- Use Area: Indoor and covered outdoor areas only
- Dimensions (H x L x W): 365mm x 1250mm x 1250mm
- Weight: 4.99 kg
Key Features
- Energy-efficient DC motor technology
- Three precision-moulded polycarbonate composite blades
- Reversible airflow for summer and winter operation
- Dimmable 20W tri-colour LED light
- Low-noise operation suitable for bedrooms, dining rooms and smaller living areas
- Includes three-speed wall controller
- Optional six-speed remote control with timer function
- Suitable for indoor and covered outdoor applications
- Includes ceiling fan, wall controller, hanging bracket, instruction manual and warranty card
Professional Installation Requirements
- Must be installed by a licensed electrician in accordance with the installation instructions and AS/NZS 3000. Ensure the blades are installed at least 2.1m above the floor and provide suitable structural support for the fan.
Applications
- Bedrooms
- Dining rooms
- Smaller living areas
- Indoor residential spaces
- Covered patios and verandahs
- Light commercial areas such as offices and retail spaces
Standards & Compliance
- Applicable product safety requirements: AS/NZS 60335.2.80 for electric fans
- Electrical installation should comply with AS/NZS 3000:2018 Wiring Rules
Environmental Benefits
- Efficient DC motor operates from 6W to 25W, helping reduce fan operating energy consumption
- Integrated 20W LED light provides efficient illumination compared with higher-wattage conventional lighting
- Reversible airflow supports seasonal operation and can help reduce reliance on heating or cooling
- Durable polycarbonate composite blades can support extended product service life and reduce replacement waste
Warranty Information
Six-year residential warranty comprising two years of in-home warranty plus four years motor replacement warranty. The integrated LED light carries a two-year replacement warranty. Commercial use is covered for a maximum of one year, subject to Ventair warranty terms and conditions.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
