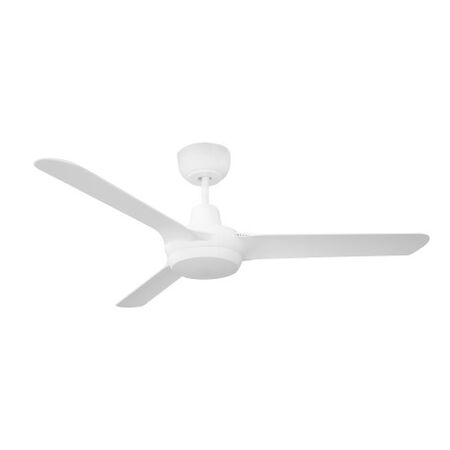

Spyda DC 1250mm 3 Blade Ceiling Fan 20W LED White Ventair
Spyda DC 50"/1250mm Energy Saving DC 3 Blade Ceiling Fan with 20W Tri-Colour Light White by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Spyda DC Ceiling Fan, SPYDC1253WH-L, 50-inch DC Ceiling Fan, Tri-Colour LED Ceiling Fan
Technical Specifications
- Model: SPYDC1253WH-L
- Motor Type: Direct current DC
- Motor Power: 6–25W
- Air Movement: 6,060–12,600m³/h
- Blade Count: 3
- Blade Material: Polycarbonate composite
- Blade Pitch: 23° high-curved profile
- Light Type: Integrated LED panel
- Light Output: 1,990 lumens
- Light Power: 20W
- Colour Temperature: 3000K warm, 4000K natural, 6000K cool white
- Dimming: Yes
- Fan Speeds: 6
- Fan Speed Range: 120–240 RPM
- Reverse Mode: Yes
- Mounting Angle: Up to 18°
- Power Supply: 220–240V AC, 50Hz
- Control: 3-speed wall controller included; optional Vario remote compatible
- Suitable Location: Indoor and covered outdoor areas
- Dimensions (H x L x W): 365mm x 1250mm x 1250mm
- Weight: 5.45 kg
Key Features
- Energy-efficient DC motor technology
- Three precision-moulded polycarbonate composite blades
- Integrated 20W dimmable tri-colour LED light
- Selectable warm, natural and cool white light settings
- Six fan speeds with airflow up to 12,600m³/h
- Summer and winter reverse airflow function
- Low-noise operation for bedrooms, dining areas and smaller living spaces
- Suitable for ceilings angled up to 18°
- White finish with corrosion-resistant and UV-protected components
- Optional Vario six-speed remote control with timer function
Professional Installation Requirements
- Installation must be performed by a qualified electrician. Install the fan with the blades at least 2.1m above the floor and incorporate an all-pole disconnection switch in the fixed wiring in accordance with local wiring rules.
Applications
- Bedrooms and sleeping areas
- Living rooms and dining areas
- Smaller commercial and hospitality spaces
- Covered patios, balconies and alfresco areas
- Indoor residential and light commercial ventilation
Standards & Compliance
- Applicable electrical safety standard: AS/NZS 60335.2.80 for household and similar electric fans
- Electrical installation should comply with AS/NZS 3000 Wiring Rules
Environmental Benefits
- Energy-efficient DC motor uses low electrical power across its speed range
- Integrated LED lighting provides efficient illumination compared with conventional halogen lighting
- Reversible airflow supports seasonal comfort and may reduce reliance on heating or cooling
- Durable polycarbonate composite blades can extend product service life and reduce replacement waste
Warranty Information
Six-year Ventair warranty comprising two years in-home service plus four years motor replacement. Commercial use is covered for one year. The integrated LED panel is subject to the applicable Ventair LED warranty terms.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
