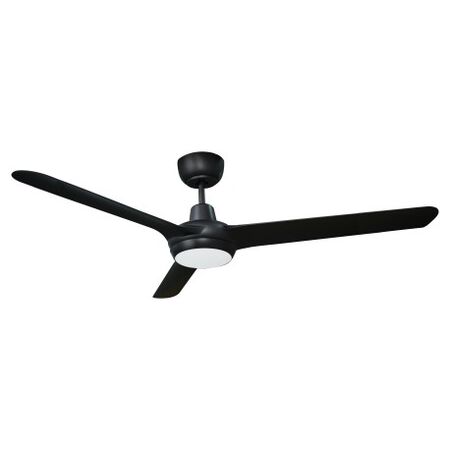

Spyda DC 1400mm 3 Blade Ceiling Fan 20W LED Black Ventair

BRAND: Ventair
SKU: SPYDC1423BL-L
$455.30 List price: $607.10
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Spyda DC 56"/1400mm Energy Saving DC 3 Blade Ceiling Fan with 20W Tri-Colour Light Black by Ventair

Alternatively Known As: Ventair Spyda DC 56-inch Ceiling Fan, SPYDC1423BL-L, Black DC Ceiling Fan with Tri-Colour LED

Technical Specifications
  • Model Number: SPYDC1423BL-L
  • Motor Type: DC
  • Motor Power: 6-35W
  • Power Input: 220-240V~ 50Hz
  • Air Movement: 6,000-13,320m³/h
  • Maximum Speed: 240 RPM
  • Blade Count: 3
  • Blade Material: Polycarbonate composite
  • Blade Pitch: 23°
  • Light Type: Slimline LED panel
  • Light Output: 20W, approximately 1,990 lumens
  • Colour Temperature: 3000K warm, 4000K natural and 6000K cool white
  • Light Control: Dimmable
  • Control: Three-speed wall controller included
  • Remote Compatibility: Ventair Vario SDCRC remote, sold separately
  • Reverse Mode: Yes
  • Maximum Mount Angle: 18°
  • Suitable Location: Indoor and covered outdoor areas
  • Dimensions (H x L x W): 365mm x 1400mm x 1400mm
  • Weight: 4.51 kg
Key Features
  • Energy-efficient direct-current motor technology
  • Three precision-moulded polycarbonate composite blades
  • Dimmable 20W tri-colour LED light
  • Selectable warm, natural and cool white colour temperatures
  • Reversible airflow for summer and winter operation
  • Low-noise operation for bedrooms, dining rooms and living areas
  • Three-speed wall controller included
  • Compatible with optional six-speed Vario remote control with timer function
  • Suitable for indoor and covered outdoor installation
Professional Installation Requirements
  • Installation must be performed by a qualified and licensed electrician in accordance with the installation manual, AS/NZS 3000 and applicable local electrical requirements. An all-pole disconnection device is required in the fixed wiring, and the fan blades should be installed at least 2.1m above the floor.
Applications
  • Bedrooms
  • Dining rooms
  • Living rooms
  • General residential areas
  • Small commercial spaces
  • Indoor and fully covered outdoor areas
Standards & Compliance
  • AS/NZS 60335.2.80:2016 — applicable safety requirements for household and similar electric fans
  • AS/NZS 3000:2018 — applicable wiring requirements for fixed electrical installation
Environmental Benefits
  • Energy-efficient DC motor uses between 6W and 35W during fan operation
  • Integrated LED lighting produces approximately 1,990 lumens from 20W
  • Reversible airflow can support more efficient seasonal air circulation when used with heating or cooling systems
  • Durable polycarbonate composite blades can reduce replacement frequency and material waste
Warranty Information

Six-year limited warranty comprising two years of in-home parts and labour plus four years motor replacement. The integrated LED light carries a two-year replacement warranty. Commercial use is limited to a one-year warranty. Warranty conditions require installation by a qualified licensed electrician.

Available Now

Available through authorised Ventair distributors in Australia.

Ceiling Fan Sizing Calculator

This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
