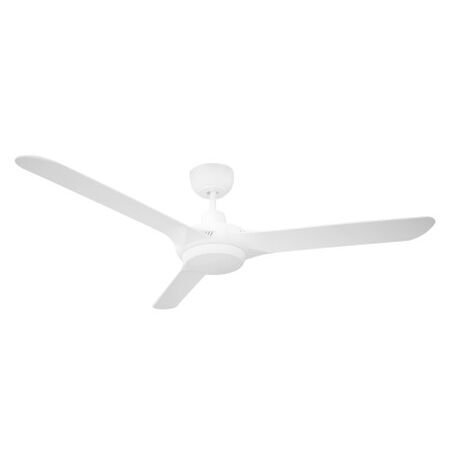

Spyda DC 1400mm 3 Blade Ceiling Fan 20W LED White Ventair
Spyda DC 56"/1400mm Energy Saving DC 3 Blade Ceiling Fan with 20W Tri-Colour Light White by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Spyda DC 56-inch Ceiling Fan, SPYDC1423WH-L, White DC Ceiling Fan with Tri-Colour LED
Technical Specifications
- Model: SPYDC1423WH-L
- Motor Type: Direct current (DC)
- Motor Power: 6-35W
- Air Movement: 6,000-13,320 m³/h
- Maximum Speed: 240 rpm
- Blade Count: 3
- Blade Material: Polycarbonate composite
- Blade Pitch: 23° curved profile
- Light Type: Slimline LED panel
- Light Power: 20W
- Light Output: 1,990 lumens average
- Colour Temperature: 3,000K warm, 4,000K natural, 6,000K cool white
- Dimming: Yes
- Reverse Function: Yes
- Mount Angle: 0-18°
- Control: Three-speed wall controller included
- Remote Compatibility: Vario SDCRC six-speed remote, sold separately
- Power Input: 220-240V, 50Hz
- Suitable Location: Indoor and fully covered outdoor areas
- Dimensions (H x L x W): 365mm x 1400mm x 1400mm
- Weight: 5.41 kg
Key Features
- Energy-efficient DC motor technology
- Three precision-moulded polycarbonate composite blades
- Dimmable 20W integrated LED light
- Selectable warm, natural and cool white colour temperatures
- Reversible airflow for summer and winter operation
- Low-noise operation suited to bedrooms and living areas
- Three-speed wall controller included
- Optional six-speed Vario remote control with timer function
- Suitable for indoor and covered outdoor applications
Professional Installation Requirements
- Installation must be performed by a qualified and licensed electrician. Fixed-wiring isolation and installation in accordance with AS/NZS 3000 and the supplied instructions are required. The fan must be installed with the blades at least 2.1m above the floor and is not suitable for exposed outdoor locations.
Applications
- Large bedrooms and master bedrooms
- Living and family rooms
- Home offices and general living areas
- Covered alfresco and patio areas
- Residential indoor applications
- Suitable commercial indoor installations subject to the commercial warranty
Standards & Compliance
- AS/NZS 60335.2.80:2025 - safety requirements for household and similar electric fans
- AS/NZS 3000:2018 - Australian and New Zealand Wiring Rules for fixed electrical installation
Environmental Benefits
- DC motor technology operates from 6W to 35W, supporting reduced electricity consumption
- Integrated 20W LED lighting provides approximately 1,990 lumens with efficient illumination
- Durable polycarbonate composite blades can reduce replacement frequency and material waste
- Reversible airflow supports seasonal air circulation and may reduce reliance on air conditioning in suitable conditions
Warranty Information
Six-year limited warranty comprising two years in-home parts and labour plus four additional years replacement warranty on the motor. The integrated LED light carries a two-year replacement warranty. Commercial use is limited to a maximum one-year warranty.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
