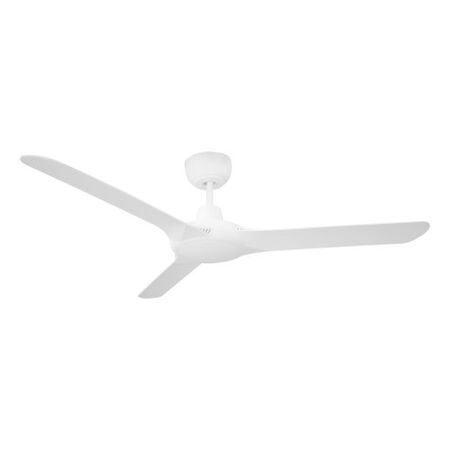

Spyda DC 1400mm 3 Blade Ceiling Fan White Ventair
Spyda DC 56"/1400mm Energy Saving DC 3 Blade Ceiling Fan White by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Spyda DC 56 Inch Ceiling Fan, Ventair Spyda SPYDC1423WH, White DC Ceiling Fan
Technical Specifications
- Model: SPYDC1423WH
- Motor Type: Direct current DC
- Motor Power: 6–35 W
- Air Movement: 6,000–13,320 m³/h
- Maximum Speed: 240 rpm
- Blade Count: 3
- Blade Material: Polycarbonate composite
- Blade Pitch: 23°
- Power Input: 220–240 V, 50 Hz
- Control: Three-speed wall controller included
- Remote Compatibility: Vario six-speed remote control sold separately
- Reverse Mode: Yes
- Mount Angle: Up to 18°
- Ingress Protection: No IP rating; suitable for indoor and covered outdoor areas
- Dimensions (H x L x W): 349mm x 1400mm x 1400mm
- Weight: 5.21 kg
Key Features
- Energy-efficient DC motor technology
- Low-noise operation for bedrooms and living areas
- Three precision-moulded polycarbonate composite blades
- Reversible airflow for summer and winter operation
- Includes three-speed wall controller
- Optional six-speed Vario remote control with timer function
- Suitable for indoor and fully covered outdoor areas
Professional Installation Requirements
- Installation must be completed by a licensed or qualified electrician in accordance with the manufacturer's instructions and applicable Australian wiring rules. The fan must be installed with the blades at least 2.1 metres above the floor and protected from direct exposure to weather.
Applications
- Bedrooms
- Master bedrooms
- Living rooms
- Family rooms
- General residential areas
- Covered outdoor areas
Standards & Compliance
- Applicable product safety standard: AS/NZS 60335.2.80 for household and similar electric fans
- Electrical installation should comply with AS/NZS 3000 wiring rules
Environmental Benefits
- Energy-efficient DC motor uses as little as 6 W at the lowest speed
- Efficient airflow can help reduce reliance on air conditioning in suitable conditions
- Durable polycarbonate composite blades support extended service life and reduced replacement waste
Warranty Information
Six-year limited warranty comprising two years of in-home parts and labour coverage followed by four years of motor replacement warranty. Commercial use is covered for a maximum of one year. Warranty conditions require installation by a licensed electrical contractor where applicable.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
