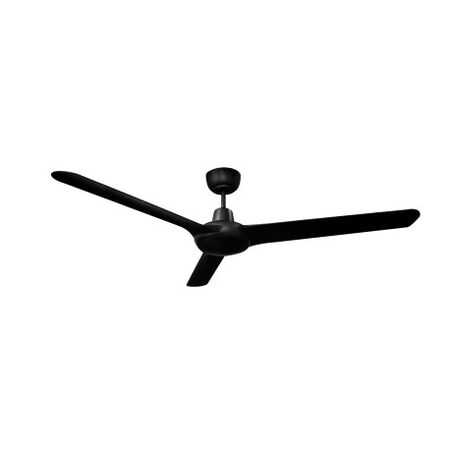

Spyda DC 1573mm 3 Blade Ceiling Fan Black Ventair
Spyda DC 62"/1573mm Energy Saving DC 3 Blade Ceiling Fan Black by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Spyda DC 62-inch Ceiling Fan, SPYDA DC Black Ceiling Fan, Ventair SPYDC1573BL
Technical Specifications
- Model: SPYDC1573BL
- Motor Type: Direct current (DC)
- Motor Power: 6–45W
- Maximum Air Movement: 15,300 m³/h
- Operating Voltage: 220–240V AC
- Frequency: 50Hz
- Blade Count: 3
- Blade Material: Polycarbonate composite
- Blade Sweep: 1570mm (62 inches)
- Blade Pitch: 23° curved blade
- Maximum Speed: 200 RPM
- Airflow Direction: Reversible for summer and winter operation
- Mount Angle: Up to 18°
- Control: Supplied 3-speed wall controller
- Remote Compatibility: Vario SDCRC six-speed remote, sold separately
- Installation Environment: Indoor and covered outdoor areas only
- Ingress Protection: No IP rating
- Included Components: Ceiling fan, three-speed wall controller, hanging bracket, instruction manual and warranty card
- Dimensions (H x L x W): 375mm x 1570mm x 1570mm
- Weight: 5.46 kg
Key Features
- Energy-efficient DC motor technology
- Low-noise operation for larger living areas and open spaces
- Three precision-moulded polycarbonate composite blades
- Reversible airflow for cooling in summer and circulation in winter
- Suitable for indoor and adequately protected covered outdoor areas
- Supplied three-speed wall controller suitable for AC fan upgrades
- Optional Vario remote control provides six speeds and timer functionality
- Wall controller and optional remote can operate simultaneously
Professional Installation Requirements
- Installation must be carried out by a qualified and licensed electrician. Fixed wiring must include an all-pole disconnection switch, and the fan must be installed using the supplied hardware in accordance with Australian wiring requirements. Maintain a minimum blade clearance of 2.1m above the floor in Australia.
Applications
- Large bedrooms and living areas
- Open-plan residential spaces
- Large covered alfresco areas
- Indoor air circulation and cooling
- Residential ceiling fan replacement or AC fan upgrade installations
Standards & Compliance
- AS/NZS 60335.2.80:2016 for household and similar electric fans
- AS/NZS 3000 for electrical installation and fixed wiring requirements
Environmental Benefits
- Low-power DC motor operation can reduce electricity consumption compared with conventional AC ceiling fan motors
- Reversible airflow supports seasonal air circulation and may reduce reliance on heating or cooling equipment
- Durable polycarbonate composite blades can extend service life and reduce replacement waste
Warranty Information
Six-year limited warranty comprising two years in-home warranty on parts and labour, followed by four years replacement warranty on the motor. Commercial use is limited to a maximum one-year warranty. Installation by a qualified electrician and compliance with Ventair warranty conditions are required.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
