Trade Discount 25%

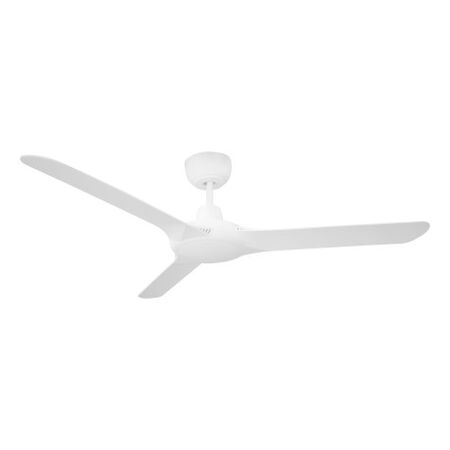

Spyda DC 1573mm 3 Blade Ceiling Fan White Ventair
Spyda DC 62"/1573mm Energy Saving DC 3 Blade Ceiling Fan White by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Spyda DC 1573 Ceiling Fan, Ventair SPYDC1573WH, 1570mm DC Ceiling Fan
Technical Specifications
- Model Number: SPYDC1573WH
- Colour: White
- Motor Type: Direct current DC
- Motor Power: 6–45 W
- Power Input: 220–240 V AC, 50 Hz
- Maximum Air Movement: 15,300 m³/h
- Minimum Air Movement: 6,720 m³/h
- Maximum Speed: 200 rpm
- Blade Count: 3
- Blade Material: Polycarbonate composite
- Blade Sweep: 1570 mm, 62 inches
- Blade Pitch: 23° curved blade
- Blade Drop: 345 mm
- Reverse Mode: Yes
- Included Control: Three-speed wall controller
- Remote Compatibility: Vario SDCRC six-speed remote, sold separately
- Maximum Mount Angle: 18°
- Suitable Location: Indoor and covered outdoor areas
- Dimensions (H x L x W): 375mm x 1570mm x 1570mm
- Weight: 5.46 kg
Key Features
- Energy-efficient DC motor technology
- Low-noise operation for living areas and large open spaces
- Three precision-moulded polycarbonate composite blades
- Reversible airflow for summer and winter operation
- Includes three-speed wall controller
- Optional six-speed Vario remote control with timer function
- Remote and wall controller can operate simultaneously
- Suitable for large covered alfresco areas when adequately protected from the elements
Professional Installation Requirements
- Installation must be completed by a qualified and licensed electrician in accordance with the instruction manual and AS/NZS 3000. Fixed wiring must include suitable all-pole disconnection, and the supplied Ventair hardware and wall controller should be used.
Applications
- Large living rooms and open-plan areas
- Bedrooms and family rooms
- Commercial or light-commercial indoor spaces, subject to the commercial warranty limitation
- Large covered alfresco and outdoor entertaining areas protected from direct weather exposure
Standards & Compliance
- AS/NZS 60335.2.80: Particular requirements for household and similar electric fans
- AS/NZS 60335-1: General safety requirements for household and similar electrical appliances
- AS/NZS 3000: Electrical installations and wiring requirements
Environmental Benefits
- DC motor technology can reduce operating energy consumption compared with conventional AC fan motors
- Reversible airflow supports seasonal ventilation and may reduce reliance on mechanical heating or cooling
- Durable polycarbonate composite blades can support extended product service life and reduce replacement waste
- Low operating power from 6 W to 45 W supports efficient air movement
Warranty Information
Six-year limited warranty for residential use, comprising two years parts and labour with in-home service followed by four years motor replacement warranty. Commercial use is covered for a maximum of one year. Warranty conditions require installation by a licensed electrician and protection from direct weather exposure.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
