Spyda DC 900mm 3 Blade Ceiling Fan 20W LED Black Ventair

BRAND: Ventair
SKU: SPYDC903BL-L
$373.60 List price: $498.10
+ −
30 Days Return Electricians Unlock Trade Access

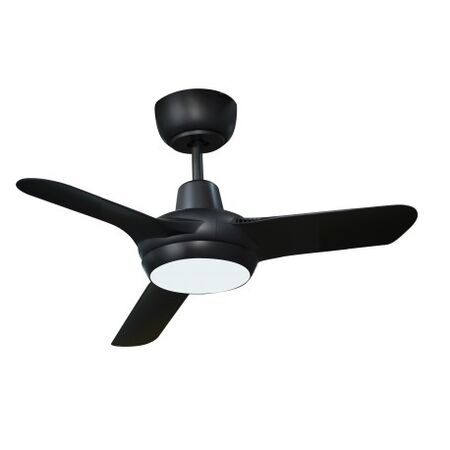

Spyda DC 36"/900mm Energy Saving DC 3 Blade Ceiling Fan with 20W Tri-Colour Light Black by Ventair

Alternatively Known As: Ventair Spyda DC 36-inch Ceiling Fan with Light, SPYDC903BL-L, Black DC Ceiling Fan

Technical Specifications
  • Model Number: SPYDC903BL-L
  • Motor Type: DC
  • Motor Power: 5–17W
  • Power Input: 220–240V AC, 50Hz
  • Maximum Air Movement: 5,700m³/h
  • Speed Range: 170–280rpm
  • Blade Count: 3
  • Blade Material: Polycarbonate composite
  • Blade Pitch: 23° curved blade
  • Light Type: Integrated LED panel
  • Light Power: 20W
  • Light Output: 1,990 lumens average
  • Colour Temperature: 3000K warm, 4000K natural, 6000K cool
  • Light Function: Dimmable and tri-colour selectable
  • Control: 3-speed wall controller included
  • Remote Compatibility: Ventair Vario SDCRC six-speed remote, sold separately
  • Airflow Direction: Reversible summer/winter mode
  • Suitable Location: Indoor and covered outdoor areas
  • Maximum Mount Angle: 18°
  • Packaging Size: 450 x 400 x 252mm
  • Packaged Gross Weight: 5.90kg
  • Dimensions (H x L x W): 365mm x 900mm x 900mm
  • Weight: 4.64 kg
Key Features
  • Energy-efficient DC motor technology
  • Compact 900mm sweep for bedrooms, home offices, nooks and other smaller spaces
  • Slimline integrated 20W dimmable LED light
  • Selectable warm, natural and cool colour temperatures
  • Reversible airflow for summer and winter operation
  • Low-noise operation
  • Precision-moulded polycarbonate composite blades
  • Three-speed wall controller included
  • Optional six-speed remote control with timer function
  • Suitable for indoor and covered outdoor areas
Professional Installation Requirements
  • Installation must be performed by a qualified and licensed electrician in accordance with the instruction manual, applicable Australian wiring requirements and required all-pole disconnection provisions. Maintain a minimum blade-to-floor clearance in accordance with local requirements.
Applications
  • Small bedrooms and guest rooms
  • Home offices and studies
  • Nooks, hallways and compact living areas
  • Indoor residential areas
  • Covered outdoor areas protected from direct weather exposure
Standards & Compliance
  • Applicable fan safety requirements: AS/NZS 60335.2.80
  • Electrical installation should comply with AS/NZS 3000 Wiring Rules
Environmental Benefits
  • Efficient DC motor uses only 5–17W for fan operation, helping reduce operating energy demand
  • Integrated LED lighting provides illumination with a relatively low 20W power draw
  • Durable polycarbonate composite blades can help reduce replacement frequency and associated waste
Warranty Information

Six-year limited warranty covering two years of in-home parts and labour followed by four years of motor replacement warranty. The integrated LED light carries a two-year replacement warranty where applicable. Commercial use is limited to a one-year warranty.

Available Now

Available through authorised Ventair distributors in Australia.

Ceiling Fan Sizing Calculator

This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
