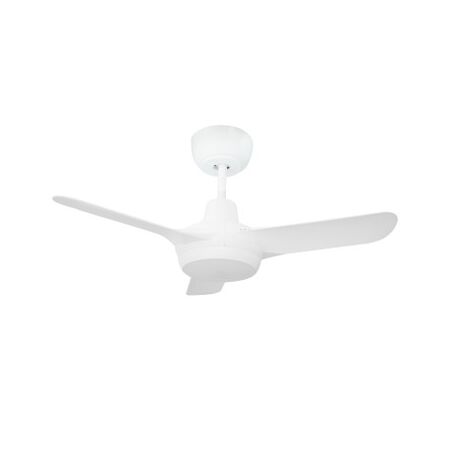

Spyda DC 900mm 3 Blade Ceiling Fan 20W LED White Ventair
Spyda DC 36"/900mm Energy Saving DC 3 Blade Ceiling Fan with 20W Tri-Colour Light White by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Spyda DC 36 Inch Ceiling Fan, Ventair SPYDC903WH-L, White DC Ceiling Fan with Light
Technical Specifications
- Model: SPYDC903WH-L
- Colour: White
- Motor Type: DC
- Motor Power: 5-17W
- Air Movement: 3,240-5,700m³/h
- Maximum Speed: 280 RPM
- Blade Count: 3
- Blade Material: Polycarbonate composite
- Blade Pitch: 23°
- Light Type: Slimline LED panel
- Light Output: 1,990 lumens average
- Light Power: 20W
- Colour Temperature: 3,000K warm, 4,000K natural, 6,000K cool
- Dimming: Yes
- Reverse Function: Yes
- Power Input: 220-240V, 50Hz
- Mount Angle: Up to 18°
- Controller: Three-speed wall controller included
- Remote Compatibility: Ventair Vario SDCRC remote, sold separately
- Dimensions (H x L x W): 365mm x 900mm x 900mm
- Weight: 4.64 kg
Key Features
- Energy-efficient DC motor technology
- Three precision-moulded polycarbonate composite blades
- Dimmable 20W tri-colour LED light
- Selectable warm, natural and cool white colour temperatures
- Reversible airflow for summer and winter operation
- Low-noise operation suited to bedrooms and home offices
- Suitable for indoor and covered outdoor areas
- Three-speed wall controller included
- Optional six-speed Vario remote control with timer function
- Remote and wall controller can operate simultaneously
Professional Installation Requirements
- Installation must be performed by a qualified or licensed electrician in accordance with the instruction manual and applicable Australian wiring requirements. Ensure the fan blades are installed at least 2.1m above the floor and the fan is adequately protected from the elements in covered outdoor areas.
Applications
- Small bedrooms
- Home offices
- Nooks and compact living areas
- Indoor residential spaces
- Covered outdoor areas
- Commercial interiors
Standards & Compliance
- AS/NZS 60335.2.80:2025 – applicable safety requirements for electric fans
- AS/NZS 3000 – electrical installation and wiring requirements
Environmental Benefits
- Efficient DC motor helps reduce operating energy consumption compared with conventional AC fan motors
- Dimmable LED lighting allows light output and energy use to be reduced when full brightness is unnecessary
- Long-life polycarbonate composite blades resist corrosion and reduce replacement waste
- Reversible airflow supports efficient seasonal heating and cooling strategies
Warranty Information
Six-year limited warranty covering two years of in-home parts and labour followed by four years of motor replacement warranty. The LED light carries a two-year replacement warranty. Commercial installations are covered for one year. Warranty conditions require installation by a licensed electrical contractor where applicable.
Available Now
Available through authorised Ventair distributors in Australia.
