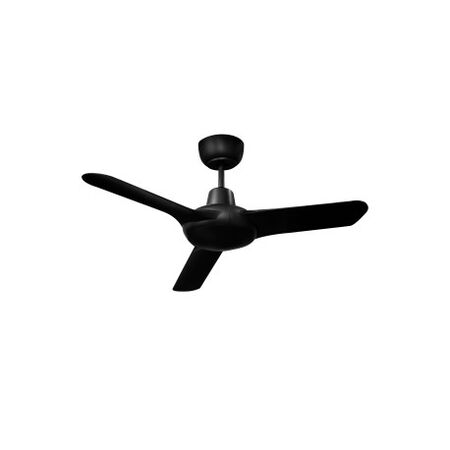

Spyda DC 900mm 3 Blade Ceiling Fan Black Ventair
Spyda DC 36"/900mm Energy Saving DC 3 Blade Ceiling Fan Black by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Spyda DC 36-inch Ceiling Fan, Ventair SPYDC903BL, 900mm DC Ceiling Sweep Fan
Technical Specifications
- Model Number: SPYDC903BL
- Motor Type: Direct current (DC)
- Motor Power: 5–17W
- Power Input: 220–240V AC, 50Hz
- Air Movement: 3,240–5,700m³/h
- Blade Count: 3
- Blade Material: Polycarbonate composite
- Blade Profile: High curved pitch
- Blade Pitch: 23°
- Speed Control: 3-speed wall controller included
- Remote Compatibility: Vario SDCRC six-speed remote control
- Maximum Speed: 280 RPM
- Airflow Direction: Reversible for summer and winter operation
- Mount Angle: 0–18°
- Installation Location: Indoor and fully covered outdoor areas
- Dimensions (H x L x W): 349mm x 900mm x 900mm
- Weight: 3.54 kg
Key Features
- Energy-efficient DC motor technology with low 5–17W power consumption
- Three precision-moulded polycarbonate composite blades
- Reversible airflow for summer and winter operation
- Three-speed wall control included
- Optional Vario SDCRC six-speed remote control with timer function
- Low-noise operation suitable for bedrooms, home offices and compact rooms
- Suitable for indoor and covered outdoor applications
- Black finish with 900mm blade sweep
Professional Installation Requirements
- Installation must be completed by a licensed electrician in accordance with the manufacturer’s instructions, local wiring rules and AS/NZS 3000. The fixing point must support at least four times the fan’s net weight, and the blades should be installed at least 2.1m above floor level.
Applications
- Small bedrooms and guest rooms
- Home offices and studies
- Nooks, hallways and compact living areas
- Indoor residential spaces
- Covered outdoor areas such as patios and verandahs
Standards & Compliance
- AS/NZS 60335.2.80:2025 - Household and similar electrical appliances safety requirements for fans
Environmental Benefits
- Low-power DC motor can reduce electricity consumption compared with conventional AC ceiling fans
- Reversible operation can assist seasonal comfort and reduce reliance on mechanical heating or cooling
- Durable polycarbonate composite blades support extended product service life and reduced replacement waste
Warranty Information
Six-year warranty comprising a two-year in-home warranty plus an additional four-year motor replacement warranty. Commercial use is covered for one year. Terms and conditions apply.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
