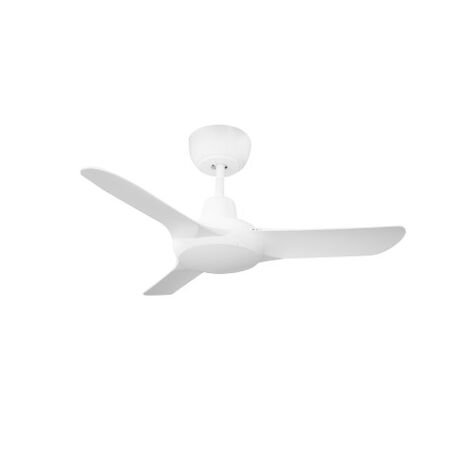

Spyda DC 900mm 3 Blade Ceiling Fan White Ventair
Spyda DC 36"/900mm Energy Saving DC 3 Blade Ceiling Fan White by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Spyda DC 36-inch Ceiling Fan, Ventair DC Ceiling Fan, 900mm DC Ceiling Fan
Technical Specifications
- Model: SPYDC903WH
- Motor Type: Direct current DC
- Motor Power: 5-17W
- Maximum Air Movement: 5,700m³/h
- Maximum Speed: 280rpm
- Blade Count: 3
- Blade Material: Polycarbonate composite
- Blade Pitch: 23° curved blade
- Sweep: 900mm
- Power Input: 220-240V AC, 50Hz
- Control: Included 3-speed wall controller
- Remote Control: Optional six-speed Vario SDCRC remote
- Reverse Function: Yes, summer and winter airflow
- Mount Angle: Up to 18°
- Suitable Location: Indoor and fully covered outdoor areas
- Dimensions (H x L x W): 349mm x 900mm x 900mm
- Weight: 3.54 kg
Key Features
- Energy-efficient DC motor technology
- Low-noise operation suited to bedrooms, home offices and smaller rooms
- Precision-moulded polycarbonate composite blades
- Reversible airflow for summer or winter operation
- Includes three-speed wall controller
- Optional six-speed remote control with timer function
- Suitable for indoor and covered outdoor applications
- Quick-connect wiring and installation-friendly assembly
Professional Installation Requirements
- Must be installed by a licensed electrician in accordance with the installation instructions and applicable Australian wiring requirements. The mounting point must support at least four times the fan's net weight, with all-pole disconnection incorporated into the fixed wiring.
Applications
- Bedrooms and small living areas
- Home offices and study rooms
- Nooks and compact residential spaces
- Indoor residential ventilation
- Fully covered patios and outdoor entertaining areas
Standards & Compliance
- Relevant fan safety requirements: AS/NZS 60335.2.80
- Electrical installation requirements: AS/NZS 3000
Environmental Benefits
- Energy-efficient DC motor uses as little as 5W at the lowest operating speed
- Low operating power can help reduce electricity consumption compared with higher-wattage fan motors
- Durable polycarbonate composite blades support extended product service life and reduced replacement waste
- Product should be disposed of through appropriate electrical or e-waste recycling channels
Warranty Information
Six-year limited warranty comprising two years in-home parts and labour plus four additional years replacement warranty on the motor. Commercial use is limited to a maximum one-year warranty. Installation by a licensed electrician and use of supplied Ventair hardware are required for warranty validity.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
