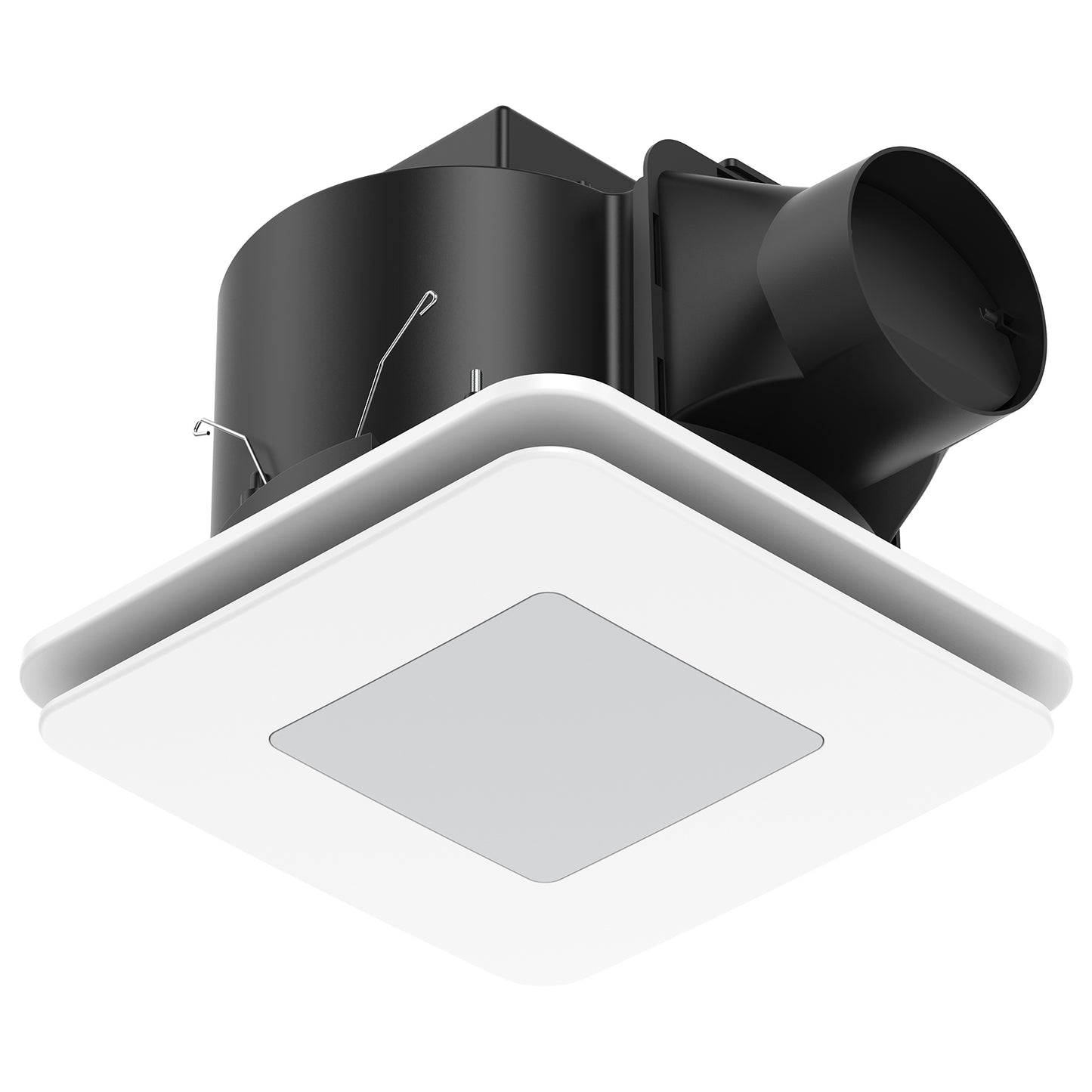

Square Exhaust Fan 15W CCT LED | High Airflow 400m³/hr | Modern Design | by Brilliant Lighting
The Square Exhaust Fan 15W CCT LED is designed for effective ventilation in bathrooms, kitchens, and laundry rooms. With a powerful 35W motor and selectable color temperatures of 3000K, 4200K, and 6000K, it ensures optimal air quality and lighting. Its low-profile design and quiet operation make it perfect for any space, while the high airflow extraction of up to 400m³/hr keeps your environment fresh and comfortable.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Square Exhaust Fan 15W CCT LED | High Airflow 400m³/hr | Modern Design | by Brilliant Lighting
Brand: Brilliant Lighting
SKU: 23032/05
Alternatively Known As: Bathroom exhaust fan with LED, Brilliant Sarico Promax 270, Square LED exhaust fan, 23032/05, CCT bathroom fan, Brilliant exhaust fan with light
Technical Specifications
- Motor Wattage: 35W
- LED Wattage: 15W
- Colour Temperature: 3000K / 4200K / 6000K (selectable)
- Air Extraction: Up to 400m³/hr
- Voltage: 220-240V AC, 50Hz
- Cut-out Size: 240mm x 240mm
- Duct Outlet: 150mm diameter
- Noise Level: 45dB(A) @ 3m
- IP Rating: IPX4
- Material: ABS plastic fascia
- Dimensions (H x L x W): 210mm x 270mm x 270mm
- Weight: 2.5 kg
Key Features
- Integrated 15W CCT LED panel with selectable colour temperature (3000K, 4200K, 6000K)
- High airflow extraction up to 400m³/hr
- Powerful 35W motor for efficient ventilation
- Low profile, modern square fascia design
- Quiet operation for minimal disturbance
- Easy installation with side duct outlet and draft stopper
- 3-year replacement warranty
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian electrical standards and optimal performance.
Applications
- Bathrooms: Effective steam and moisture extraction
- Laundry rooms: Ventilation and odour control
- Toilets: Air circulation and humidity management
- Kitchens: Supplementary ventilation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60598 for safety and performance standards
Environmental Benefits
- Energy-efficient LED lighting reduces electricity consumption
- Improves indoor air quality by removing moisture and preventing mould growth
- Long-life LED reduces replacement waste
Warranty Information
3-year replacement warranty provided by Brilliant Lighting.
Available Now
The Sarico Promax 270 Square Exhaust Fan 15W CCT LED by Brilliant Lighting is available for immediate purchase. Ideal for bathrooms, laundries, and other areas requiring efficient ventilation and lighting.
