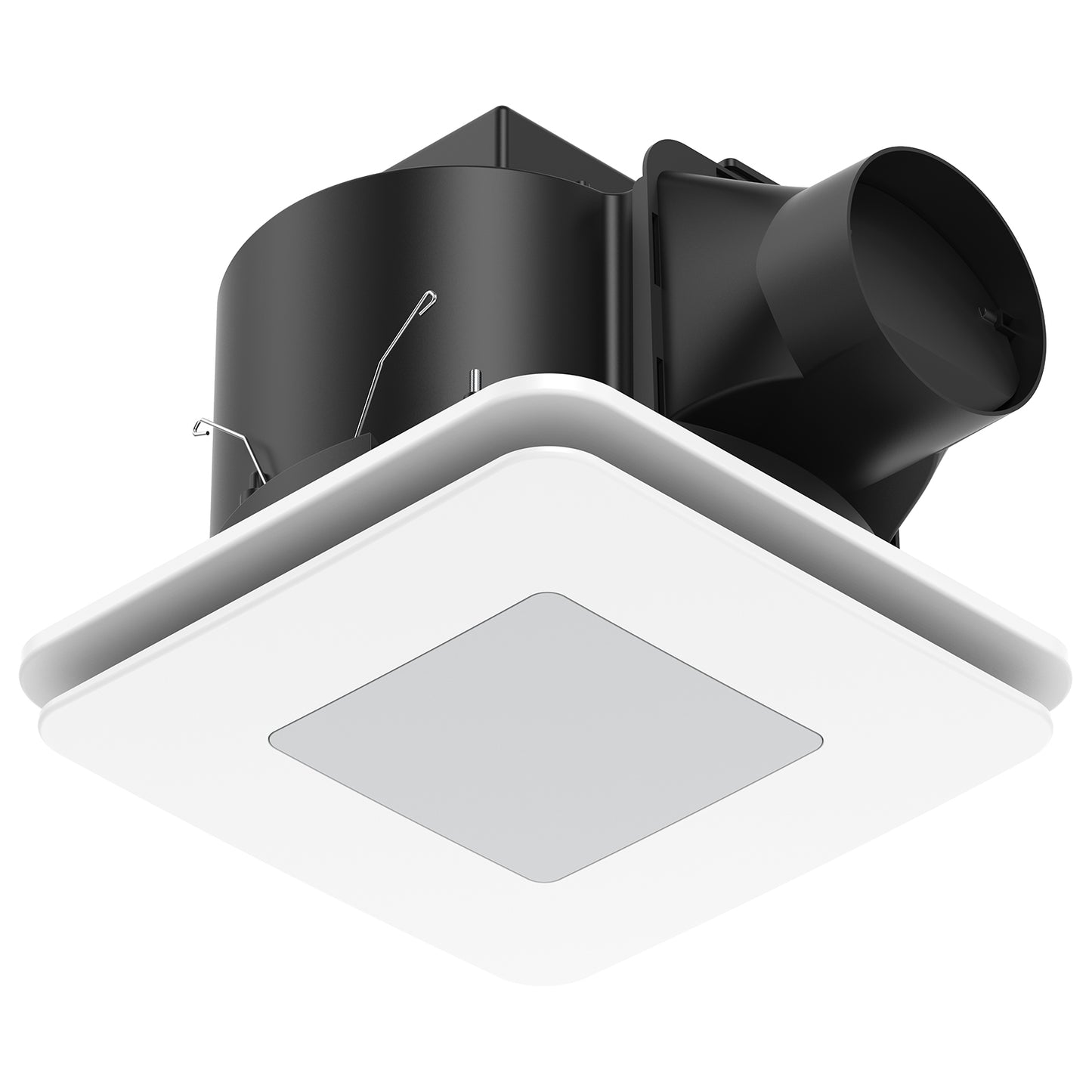

Square Exhaust Fan 15W CCT LED | High Airflow 400m³/hr | Modern Design | by Brilliant Lighting
The Square Exhaust Fan 15W CCT LED is designed for effective ventilation in bathrooms, kitchens, and laundry rooms. With a high airflow extraction of up to 400m³/hr and an integrated 15W CCT LED panel offering selectable color temperatures, it ensures optimal air quality and lighting. Its low-profile, modern design and quiet operation make it a perfect choice for any space.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Square Exhaust Fan 15W CCT LED | High Airflow 400m³/hr | Modern Design | by Brilliant Lighting
Brand: Brilliant Lighting
SKU: 23033/05
Alternatively Known As: Bathroom exhaust fan with LED, Brilliant Sarico Promax 330, Square LED exhaust fan, 23033/05, Brilliant exhaust fan with light
Technical Specifications
- Motor Wattage: 50W
- LED Wattage: 15W
- Colour Temperature: 3000K / 4200K / 6000K (selectable)
- Air Extraction: Up to 400m³/hr
- Voltage: 220-240V AC, 50Hz
- Cut-out Size: 295 x 295mm
- Duct Outlet: 150mm diameter
- Noise Level: 45dB(A) @ 3m
- IP Rating: IPX4
- Material: ABS plastic fascia
- Dimensions (H x L x W): 210mm x 330mm x 330mm
- Weight: 2.5 kg
Key Features
- Integrated 15W CCT LED panel with selectable colour temperature (3000K, 4200K, 6000K)
- High airflow extraction up to 400m³/hr
- Low profile, modern square fascia design
- Quiet operation with efficient 50W motor
- Easy installation and maintenance
- 3-year replacement warranty
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian electrical standards and optimal performance.
Applications
- Bathrooms: Effective steam and odour extraction
- Laundry rooms: Moisture control
- Toilets: Ventilation and lighting
- Kitchens: Supplementary ventilation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED lighting reduces electricity consumption
- Improves indoor air quality by removing moisture and pollutants
- Reduces risk of mould and mildew growth
Warranty Information
3-year replacement warranty provided by Brilliant Lighting.
Available Now
The Sarico Promax 330 Square Exhaust Fan 15W CCT LED in White by Brilliant Lighting is available for immediate purchase. Ideal for bathrooms, laundries, and kitchens requiring efficient ventilation and modern LED lighting.
