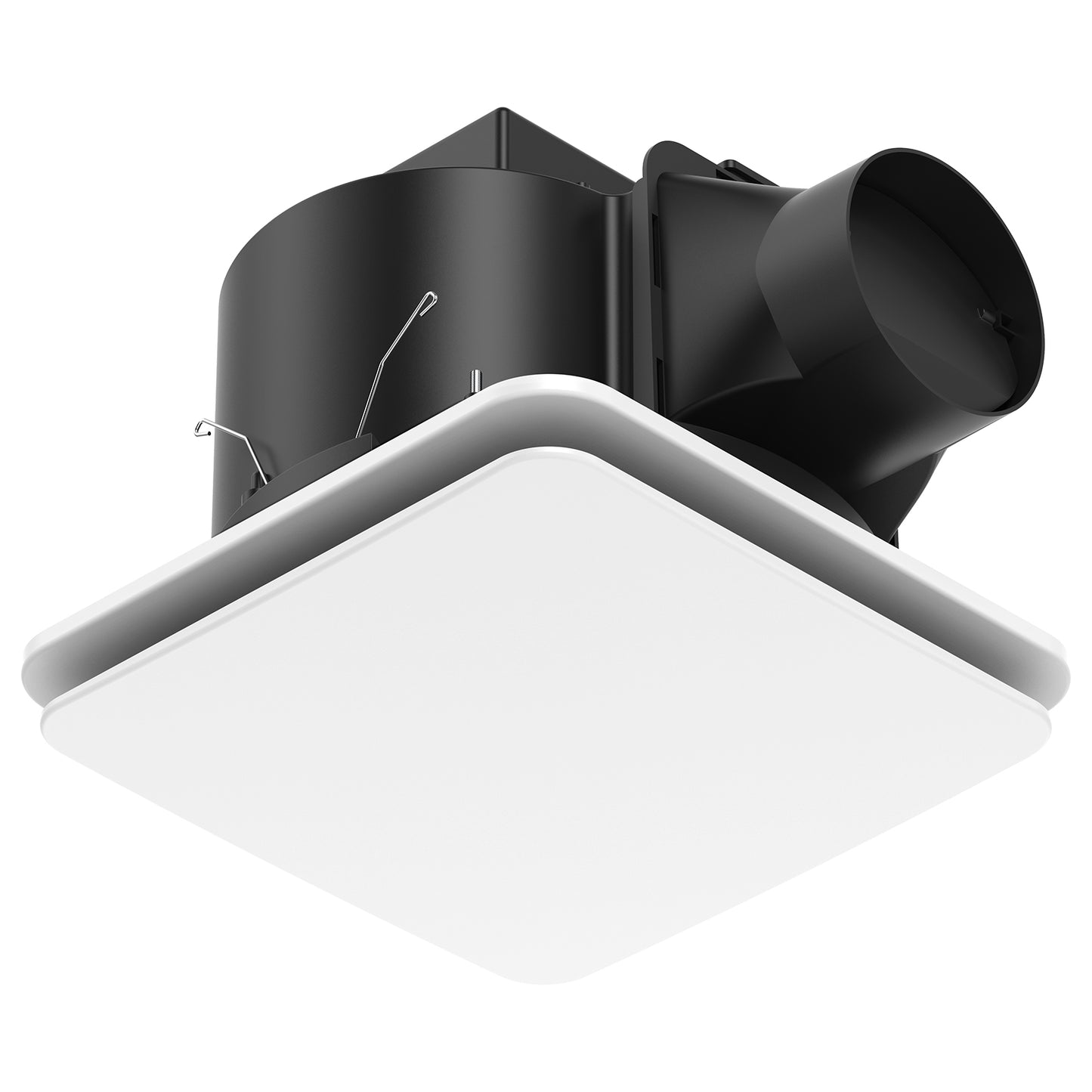

Square Exhaust Fan | High Airflow 320m³/hr | Quiet Operation | Modern Design | by Brilliant Lighting
The Square Exhaust Fan delivers high airflow extraction up to 320m³/hr, making it ideal for bathrooms, kitchens, and laundry rooms. With a low-profile, modern design and quiet operation, this fan ensures efficient ventilation while enhancing indoor air quality. Built for residential and commercial use, it features a 35W long-life motor and easy installation with included plug and lead.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Square Exhaust Fan | High Airflow 320m³/hr | Quiet Operation | Modern Design | by Brilliant Lighting
Brand: Brilliant Lighting
SKU: 23030/05
Alternatively Known As: Brilliant Sarico Promax 270 Exhaust Fan, 23030/05, Square Bathroom Exhaust Fan, Brilliant 270mm Exhaust Fan, White Ceiling Ventilation Fan
Technical Specifications
- Motor Wattage: 35W
- Air Extraction: Up to 320m³/hr
- Voltage: 220-240V AC, 50Hz
- Noise Level: 40dB(A) approx.
- Cut-out Size: 270mm x 270mm
- Fascia Size: 300mm x 300mm
- Duct Outlet: 100mm diameter
- Material: ABS plastic
- Plug and lead included
- IPX2 rated
- Dimensions (H x L x W): 110mm x 300mm x 300mm
- Weight: 1.5 kg
Key Features
- High airflow extraction up to 320m³/hr
- Low profile, modern square fascia design
- Quiet operation
- 35W long-life ball bearing motor
- Easy installation with plug and lead included
- Removable grille for easy cleaning
- 3 year replacement warranty
Professional Installation Requirements
- Installation by a licensed electrician is recommended to ensure compliance with Australian electrical safety standards.
Applications
- Bathrooms
- Laundry rooms
- Toilets
- Kitchens
- General residential and commercial ventilation
Standards & Compliance
- Complies with AS/NZS 60335 – Electrical Equipment Safety
Environmental Benefits
- Improves indoor air quality by removing moisture and pollutants
- Reduces risk of mould and mildew growth
- Energy-efficient 35W motor minimizes power consumption
Warranty Information
3 year replacement warranty provided by Brilliant Lighting.
Available Now
The Sarico Promax 270 Square Exhaust Fan in White by Brilliant Lighting is available for immediate purchase. Ideal for bathrooms, laundries, kitchens, and other areas requiring efficient ventilation.
