Trade Discount 23%

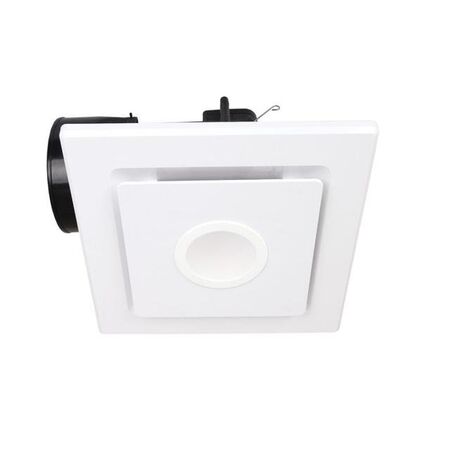

Square Exhaust Fan with Light | 30W Motor | 10W 3000K LED
Square exhaust fan with 30W motor and 10W 3000K LED downlight—ideal for bathrooms, toilets, and kitchens. Built for efficient air extraction up to 270m3/hr, with a 240mm cut-out size and side ducted design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Square Exhaust Fan with Light | 30W Motor | 10W 3000K LED
SKU: H200-9L
Alternatively Known As: Bathroom exhaust fan with light, kitchen exhaust fan, toilet ventilation fan, LED exhaust fan
Technical Specifications
- Motor Power: 30W
- LED Power: 10W
- LED Colour Temperature: 3000K
- Cut-out Size: 240mm
- Duct Outlet Diameter: 100mm
- Air Extraction Rate: Up to 270m3/hr
- Side ducted with draft stopper
- Flex and plug supplied
- Dimensions (H x L x W): 260mm x 150mm x 260mm
- Weight: 1.5 kg
Key Features
- 30W motor for efficient air extraction
- 10W 3000K LED downlight providing warm lighting
- 240mm cut-out size for installation
- Flex and plug supplied for easy connection
- 100mm duct outlet for air extraction
- Side ducted design with draft stopper
- Air extraction capacity up to 270m3/hr
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper electrical connection and ventilation setup.
Applications
- Bathroom ventilation
- Toilet ventilation
- Kitchen ventilation
Standards & Compliance
- Complies with AS/NZS 1680 – Interior Lighting and Workplace Illumination
Environmental Benefits
- Energy-efficient 10W LED light reduces power consumption
- Effective air extraction improves indoor air quality
Warranty Information
12 months replacement warranty.
Available Now
The Square Exhaust Fan with Light is available now for immediate purchase. Ideal for residential bathroom, toilet, and kitchen ventilation applications.
Exhaust Fan Airflow Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
