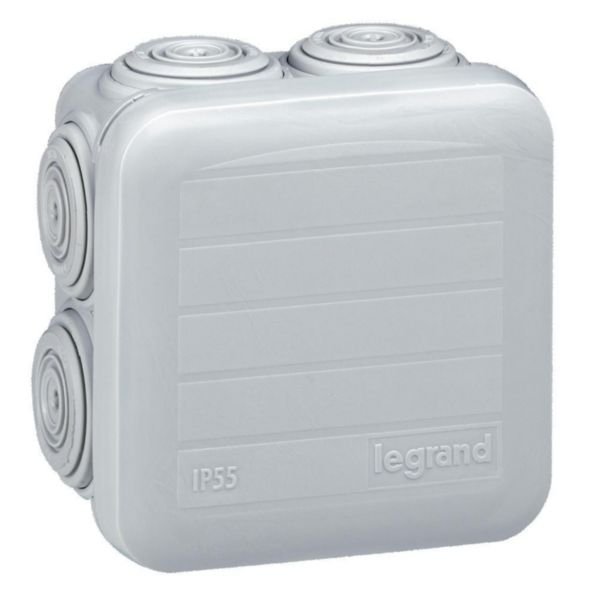

Square Plexo Box with 7 Direct Entry Membrane Glands | IP55 & IK07 Rated | Halogen-Free Plastic | Grey RAL 7035 | @Each of 1 | by Legrand
The Square Plexo Box with 7 direct entry membrane glands is designed for robust electrical junction applications, offering IP55 and IK07 ratings for dust and water protection. Made from halogen-free plastic, it accommodates cable diameters from 4 to 20 mm, making it ideal for both indoor and outdoor installations. Perfect for residential, commercial, and industrial wiring, this box ensures safety and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Square Plexo Box with 7 Direct Entry Membrane Glands | IP55 & IK07 Rated | Halogen-Free Plastic | Grey RAL 7035 | @Each of 1 | by Legrand
Brand: Legrand
SKU: 092005
Alternatively Known As: Electrical junction box, Plexo junction box, IP55 junction box, membrane gland box, cable entry box
Technical Specifications
- Material: Halogen-free plastic
- Degree of protection: IP55
- Impact resistance: IK07
- Operating temperature: -25°C to +40°C
- Storage temperature: -25°C to +70°C
- Number of inlets: 7
- Cable diameter accepted: 4 to 20 mm
- Mounting method: Universal with vertical level adjustment
- Cover attachment: Snap-on
- Max conductor cross section: 20 mm²
- Surface protection: Untreated
- Colour: Grey RAL 7035
- Entry membrane gland type: Flexible to cut
- Dimensions (H x L x W): 46mm x 78mm x 78mm
- Weight: 0.1 kg
Key Features
- IP55 rated for dust and water protection
- IK07 impact resistance for mechanical protection
- 7 direct entry flexible membrane glands for cable diameters 4 to 20 mm
- Operating temperature range from -25°C to +40°C
- Halogen-free plastic construction compliant with RoHS 2002/95/EC
- Captive clip-on cover with tie and vertical level adjustment
- Universal mounting method with fixing centers 37-43 mm
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP55 protection.
Applications
- Electrical junction box for residential, commercial, and industrial wiring installations
- Suitable for use in normal installation circuits requiring IP55 protection
- Ideal for protecting cable connections in indoor and outdoor environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact and improve safety in case of fire
- Complies with European RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Square Plexo Box with 7 Direct Entry Membrane Glands is available for immediate purchase, ideal for electrical junction applications requiring robust protection and flexible cable entry.
