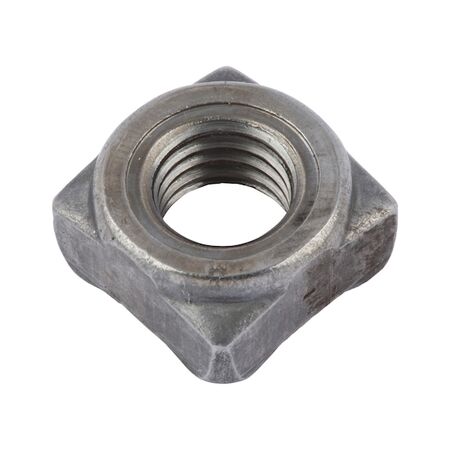

Square Weld Nuts DIN 928 | Steel Material | Plain Surface Finish | M4 Metric Thread | @Pack of 100 | by Wurth
Square Weld Nuts DIN 928 are crafted from durable steel with a plain surface finish, designed for secure fastening in welding applications. Ideal for mechanical assembly and metal fabrication, these M4 metric thread nuts ensure reliable performance and compliance with RoHS standards. Perfect for automotive and industrial equipment assembly, they come in a convenient pack of 100 for all your project needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Square Weld Nuts DIN 928 | Steel Material | Plain Surface Finish | M4 Metric Thread | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 38504
Alternatively Known As: Square weld nut, DIN 928 nut, M4 weld nut, steel weld nut
Technical Specifications
- Standard: DIN 928
- Material: Steel
- Surface: Plain
- RoHS-compliant: Yes

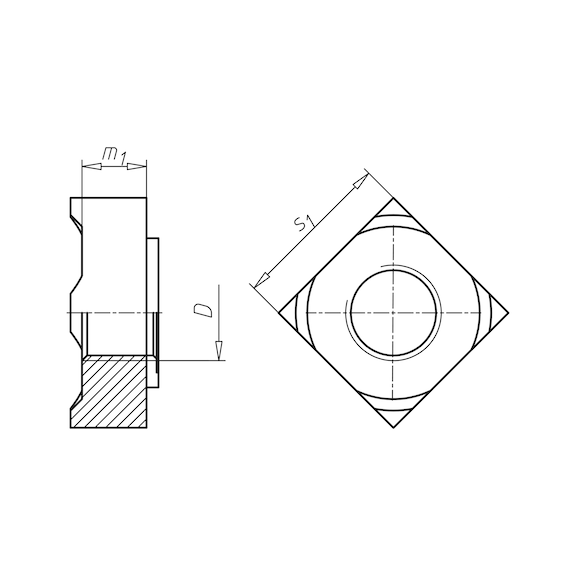

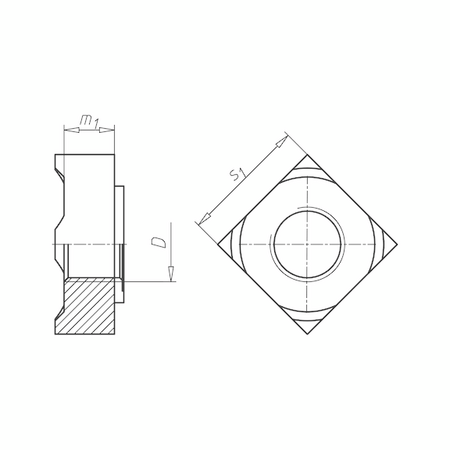

- Thread type x nominal diameter (D): M4
- Thickness (m1): 3.5 mm
- External drive (s1): WS7
- Design: With square
- Thread type: Metric thread
- Pitch: 0.7 mm
- Nominal diameter: 4 mm
- Width across corners (e): 9 mm
- Dimensions (H x L x W): 3.5mm x 9mm x 9mm
- Weight: 0.05 kg
Key Features
- Max. carbon content of 0.25%
- Steel material with plain surface finish
- Square design for secure weld fastening
- Metric thread type M4 with 0.7 mm pitch
Professional Installation Requirements
- Installation by a qualified technician or welder is recommended to ensure proper welding and fastening.
Applications
- Mechanical assembly requiring secure fastening
- Welding applications for metal fabrication
- Automotive and industrial equipment assembly
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Square Weld Nuts DIN 928 Steel Plain M4 100 PCS are available for immediate purchase, ideal for welding and mechanical fastening applications.
