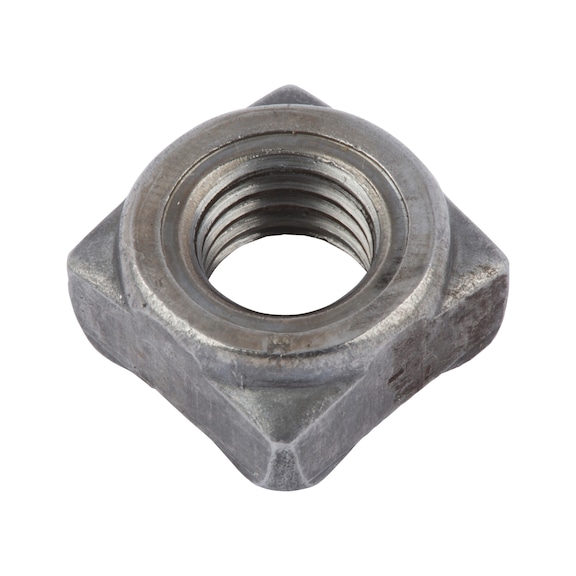

Square Weld Nuts DIN 928 | Steel Material | Plain Surface Finish | M5 Metric Thread | @Pack of 100 | by Wurth
Square weld nuts DIN 928 are crafted from durable steel with a plain surface finish, designed for secure welding applications. Ideal for mechanical assembly and metal fabrication, these M5 metric thread nuts ensure strong, permanent fastening in automotive and industrial manufacturing. RoHS-compliant, they meet safety standards while providing reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Square Weld Nuts DIN 928 | Steel Material | Plain Surface Finish | M5 Metric Thread | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 38505
Alternatively Known As: Square weld nut, DIN 928 nut, steel weld nut, M5 weld nut
Technical Specifications
- Standard: DIN 928
- Material: Steel
- Surface: Plain
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M5
- Thickness (m1): 4.2 mm
- External drive (s1): WS9
- Design: With square
- Thread type: Metric thread
- Pitch: 0.8 mm
- Nominal diameter: 5 mm
- Width across corners (e): 12 mm
- Dimensions (H x L x W): 4.2mm x 12mm x 12mm
- Weight: 0.1 kg
Key Features
- Max. carbon content of 0.25%
- Steel material with plain surface finish
- Square design for secure weld fastening
- Metric thread type with M5 nominal diameter and 0.8 mm pitch
Professional Installation Requirements
- Installation requires welding equipment and should be performed by a qualified professional to ensure secure fastening and safety.
Applications
- Mechanical assembly requiring strong, permanent fastening
- Welding applications in automotive and industrial manufacturing
- Metal fabrication and structural steelwork
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Square Weld Nuts DIN 928 Steel Plain M5 100 PCS are available for immediate purchase, ideal for welding and mechanical fastening applications.
