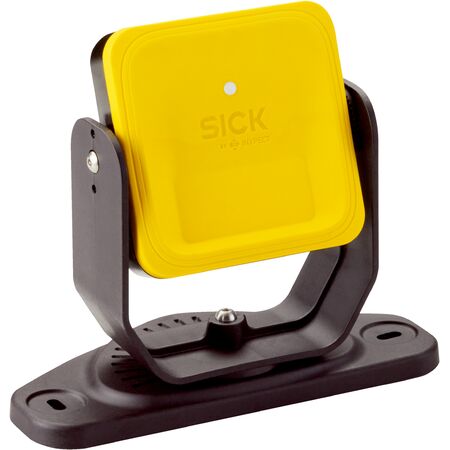

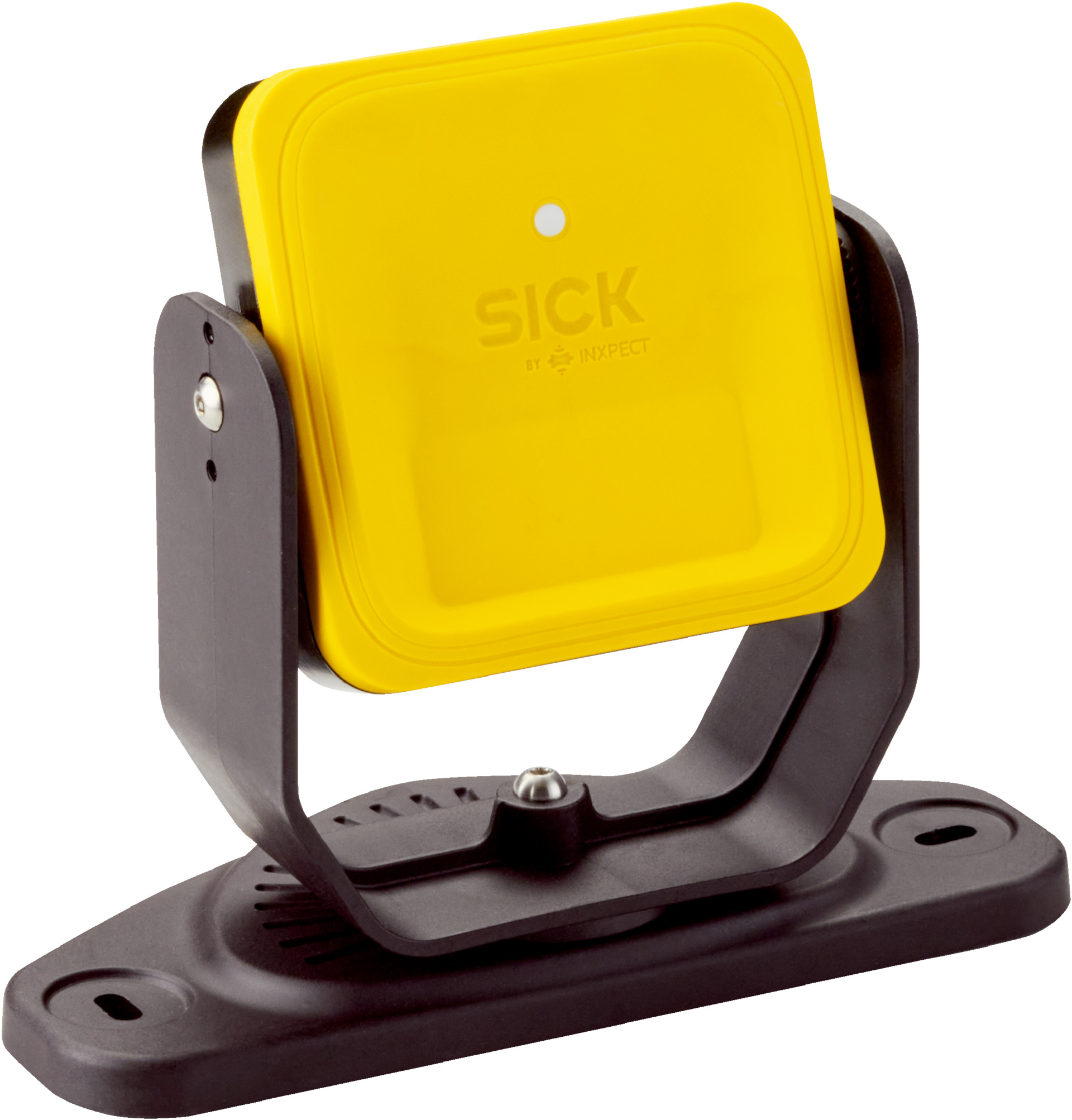

SRA3-AAR190BKZI Radar Safety Sensor | 0.2m to 9m Range | SIL 2 Safety Level | IP67 Rated | by SICK
The SRA3-AAR190BKZI Radar Safety Sensor is designed for effective safety monitoring in industrial environments, featuring a protective field range from 0.2m to 9m and an adjustable horizontal field of view. With a robust IP67 rated enclosure and a safety integrity level of SIL 2, this sensor ensures reliable personnel detection and access protection for automated guided vehicles and machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 85mm x 71mm x 85mm
- Weight: 0.5 kg
Key Features
- Protective field range from 0.2 m to 9 m with 4 protective fields
- Adjustable horizontal field of view from 10° to 100° in 10° intervals
- Vertical field of view fixed at 20°
- Response time ≤ 100 ms
- Supports vehicle speeds up to 4 m/s
- Safety integrity level SIL 2 (IEC 62061), Category 3 (EN ISO 13849), Performance level PL d
- Mean time to dangerous failure (MTTFD) of 38 years
- Safe state ensured by at least one OSSD pair in OFF state during faults
- Functions include restart interlock, muting, manipulation protection, and safe person detection
- Connection via male and female M12, 5-pin, A-coded connectors
- Supply voltage 12 V DC ± 20%, power consumption ≤ 4.7 W
- Robust housing with PA 66 sensor material, aluminum rear view, and PA 66 glass fiber bracket
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from -30 °C to +60 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety sensor systems and electrical standards.
Applications
- Indoor and outdoor stationary and mobile safety monitoring
- Personnel detection and access protection in industrial environments
- Safety monitoring for automated guided vehicles and machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable and robust design reduces need for frequent replacements
- Low power consumption of ≤ 4.7 W supports energy efficiency
- IP67 rating ensures long service life in harsh environments, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK SRA3-AAR190BKZI safeRS3 Radar Sensor is available for immediate purchase, ideal for industrial safety and personnel protection applications.
