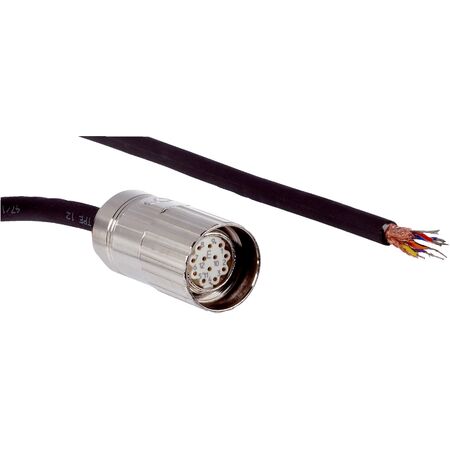

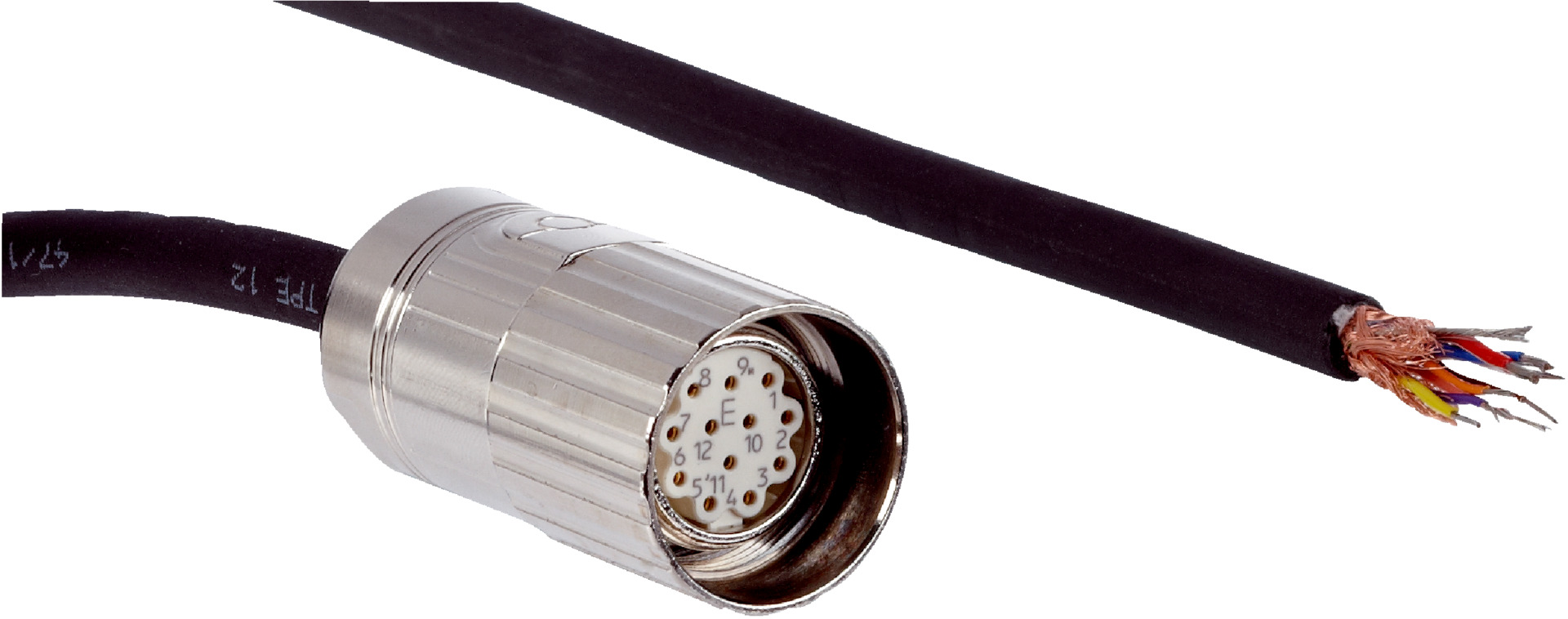

SSI Cable M23 Connector | 12-Pin Female Connector | Shielded & Halogen-Free | IP66/IP67 Rated | by SICK
The SSI Cable M23 Connector is designed for robust industrial applications, featuring a 12-pin female connector and a shielded cable for optimal interference protection. With a durable halogen-free PUR jacket and an IP66/IP67 enclosure rating, this 3-meter cable is perfect for signal transmission in automation and control systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 3 m
- Cable type: 12-wire, PUR, halogen-free
- Cable diameter: 7.8 mm
- Conductor cross section: 4 x 2 x 0.25 mm² + 2 x 0.5 mm² + 2 x 0.14 mm²
- Shielding: Shielded
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 7.5 x cable diameter
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: SSI
- Enclosure rating: IP66 / IP67
- Dimensions (H x L x W): 20mm x 3000mm x 20mm
- Weight: 0.3 kg
Key Features
- Female connector, M23, 12-pin, straight
- Shielded cable for interference protection
- Cable jacket made of halogen-free PUR material
- High enclosure rating of IP66/IP67 for dust and water resistance
- 3 meter length with 12-wire configuration
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial electrical connections to ensure proper shielding and secure connections.
Applications
- Industrial automation and control systems
- Signal transmission in machinery
- Environments requiring robust and shielded cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-2312-G03MMA2 shielded SSI cable is available for immediate purchase, ideal for industrial automation and control system applications.
