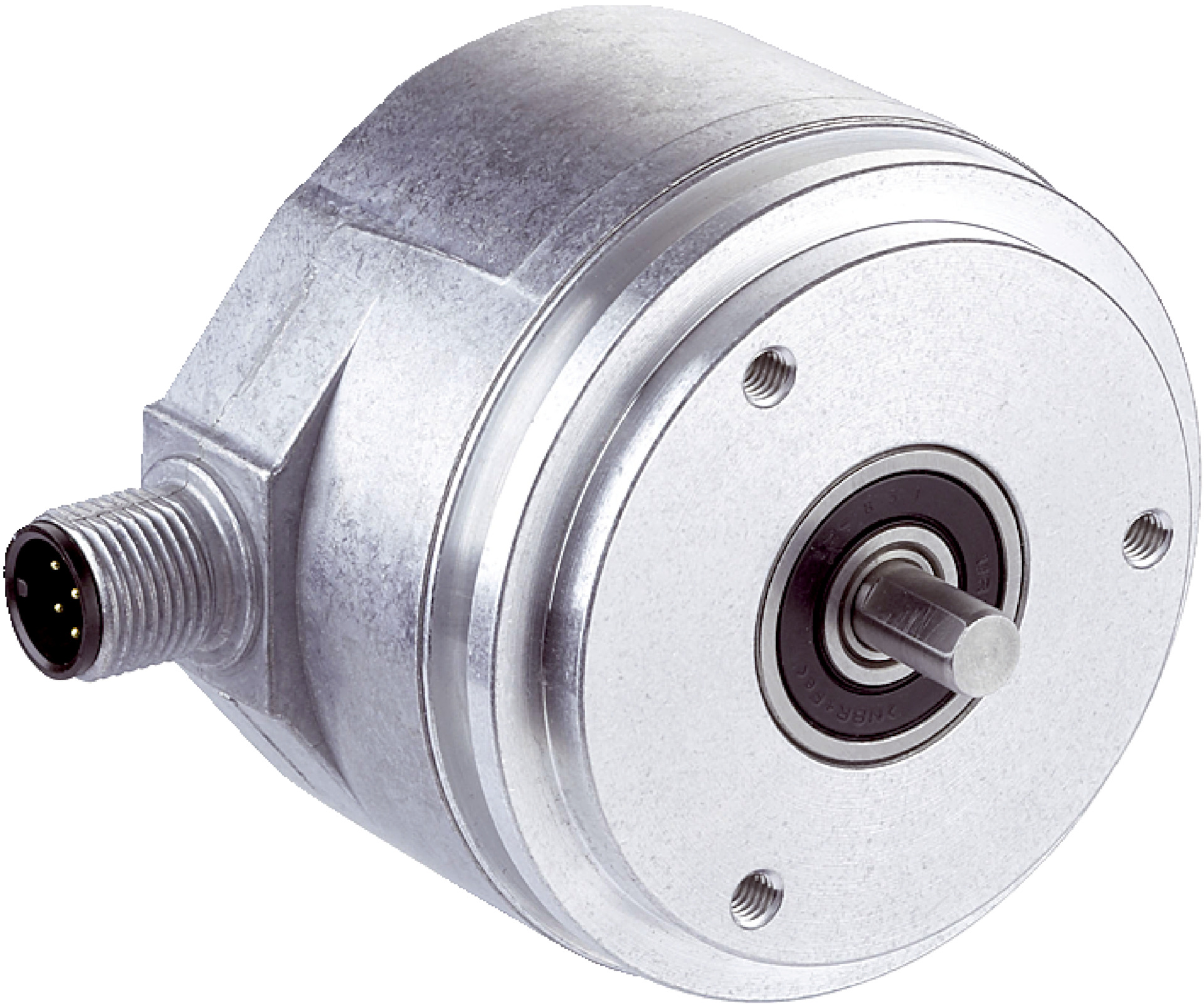

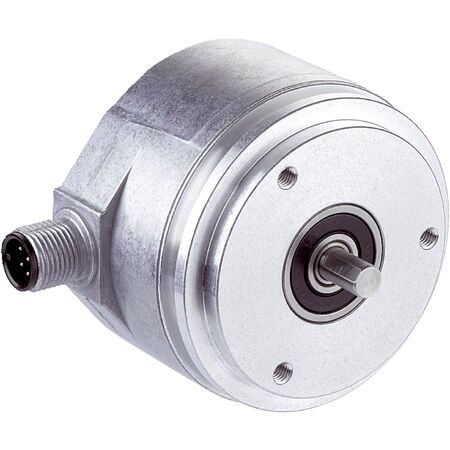

High-Resolution SSI Encoder AFM60A-S1AC008192 | 8192 Steps/Rev | IP65/IP67 Rated | by SICK
The AFM60A-S1AC008192 SSI Encoder delivers exceptional precision with a maximum resolution of 8,192 steps per revolution, making it ideal for industrial automation and robotics. Its robust design features a solid stainless steel shaft and an IP65/IP67 rated enclosure, ensuring durability in harsh environments. With low power consumption and fast initialization, this encoder is perfect for precision positioning and measurement applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High-Resolution SSI Encoder AFM60A-S1AC008192 | 8192 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1037866
Alternatively Known As: SSI Encoder, High-Resolution Rotary Encoder, Industrial Position Encoder, SICK AFM60 Encoder
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 8,192 steps/revolution x 4,096 revolutions (13 bit x 12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Connection: Male M12, 8-pin radial connector
- Mechanical design: Solid shaft with servo flange
- Shaft diameter: 6 mm with flat
- Start-up torque: < 0.5 Ncm at 20°C
- Operating torque: < 0.3 Ncm at 20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Operating temperature range: -40°C to +100°C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 60 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 8,192 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- Low operating and start-up torque for efficient performance
- IP65/IP67 rated enclosure for protection against dust and water
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Fast initialization time of 50 ms and position forming time under 1 µs
- Adjustable code sequence parameter (CW/CCW)
- High resistance to shocks (60 g) and vibration (20 g)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision positioning and measurement
- Machine tool and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60A-S1AC008192 SSI Encoder is available for immediate purchase, ideal for industrial automation and precision positioning applications.
