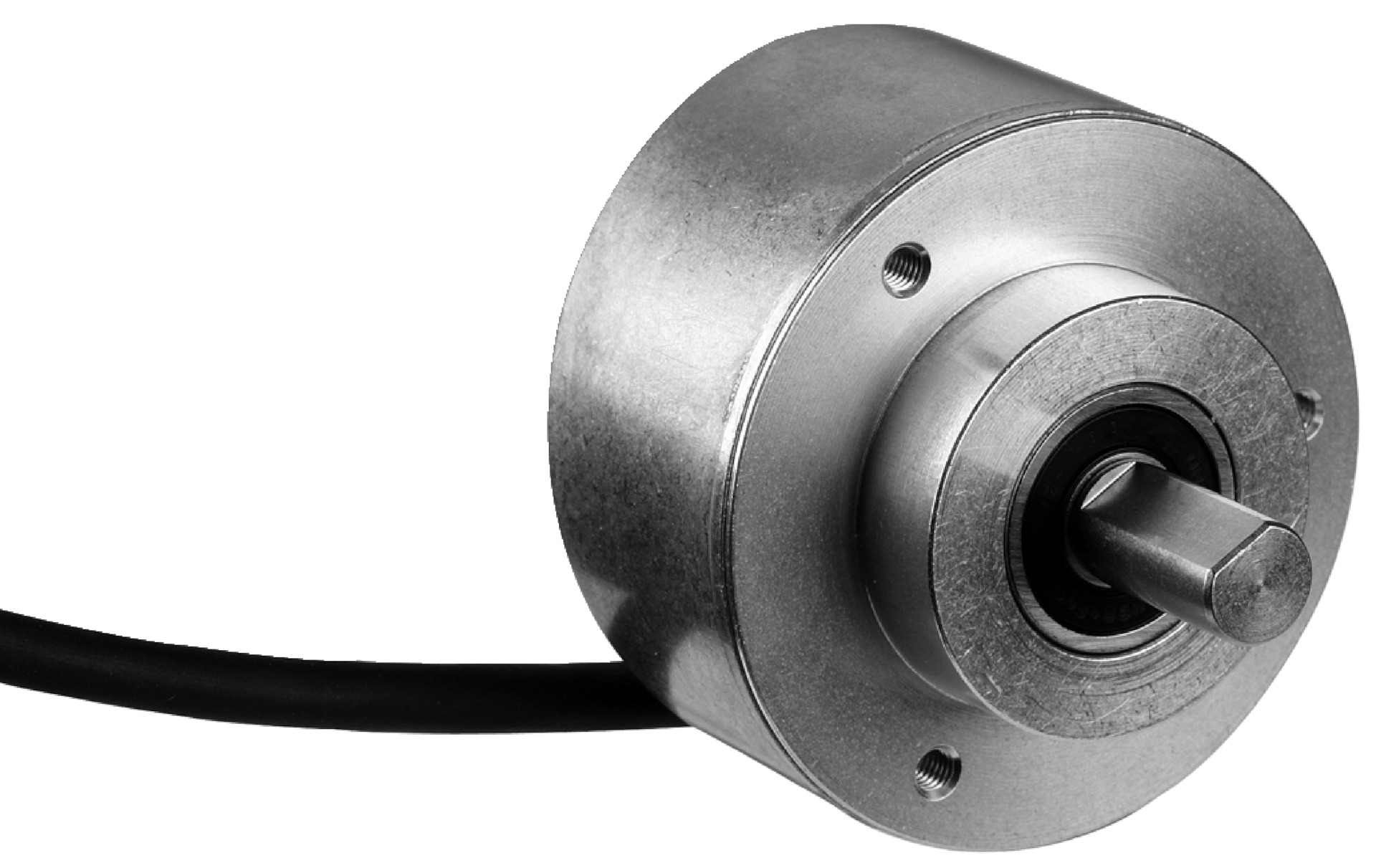

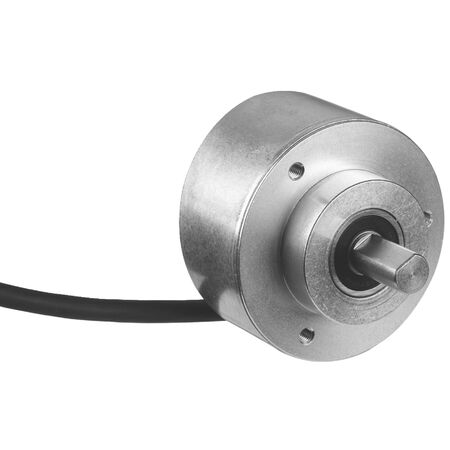

SSI Encoder AFS60B-S4AM032768 | 32,768 Steps/Rev | IP65/IP67 Rated | by SICK
The SSI Encoder AFS60B-S4AM032768 offers high precision with 32,768 steps per revolution, making it ideal for industrial automation and robotics applications. Its robust design features a stainless steel shaft and low operating torque, ensuring reliable performance in demanding environments. With fast initialization and position forming times, this encoder is perfect for machine tool positioning and safety-related monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SSI Encoder AFS60B-S4AM032768 | 32,768 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1037644
Alternatively Known As: SSI Encoder, Rotary Encoder, Incremental Encoder, Position Encoder, Industrial Encoder
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Resolution: 32,768 steps per revolution (15 bit)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: < 0.5 Ncm (+20 °C)
- Operating torque: < 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: –40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 60mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,768 steps per revolution (15 bit)
- Robust mechanical design with solid shaft and face mount flange
- Stainless steel shaft with flat for secure mounting
- Low start-up torque (< 0.5 Ncm) and operating torque (< 0.3 Ncm)
- High operating speed up to 9,000 min⁻¹
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity protection included
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with adjustable code sequence
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Safety-related monitoring and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption (≤ 0.7 W) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFS60B-S4AM032768 SSI Encoder is available for immediate purchase, ideal for industrial automation, robotics, and safety-related applications.
