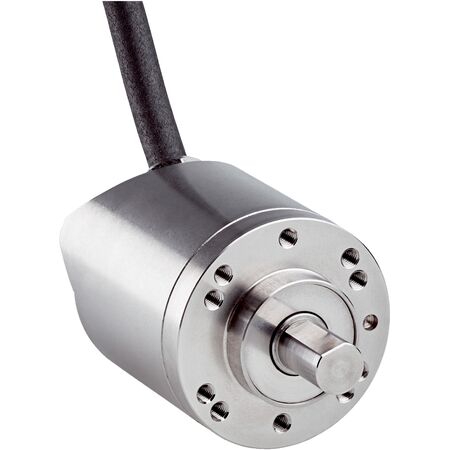

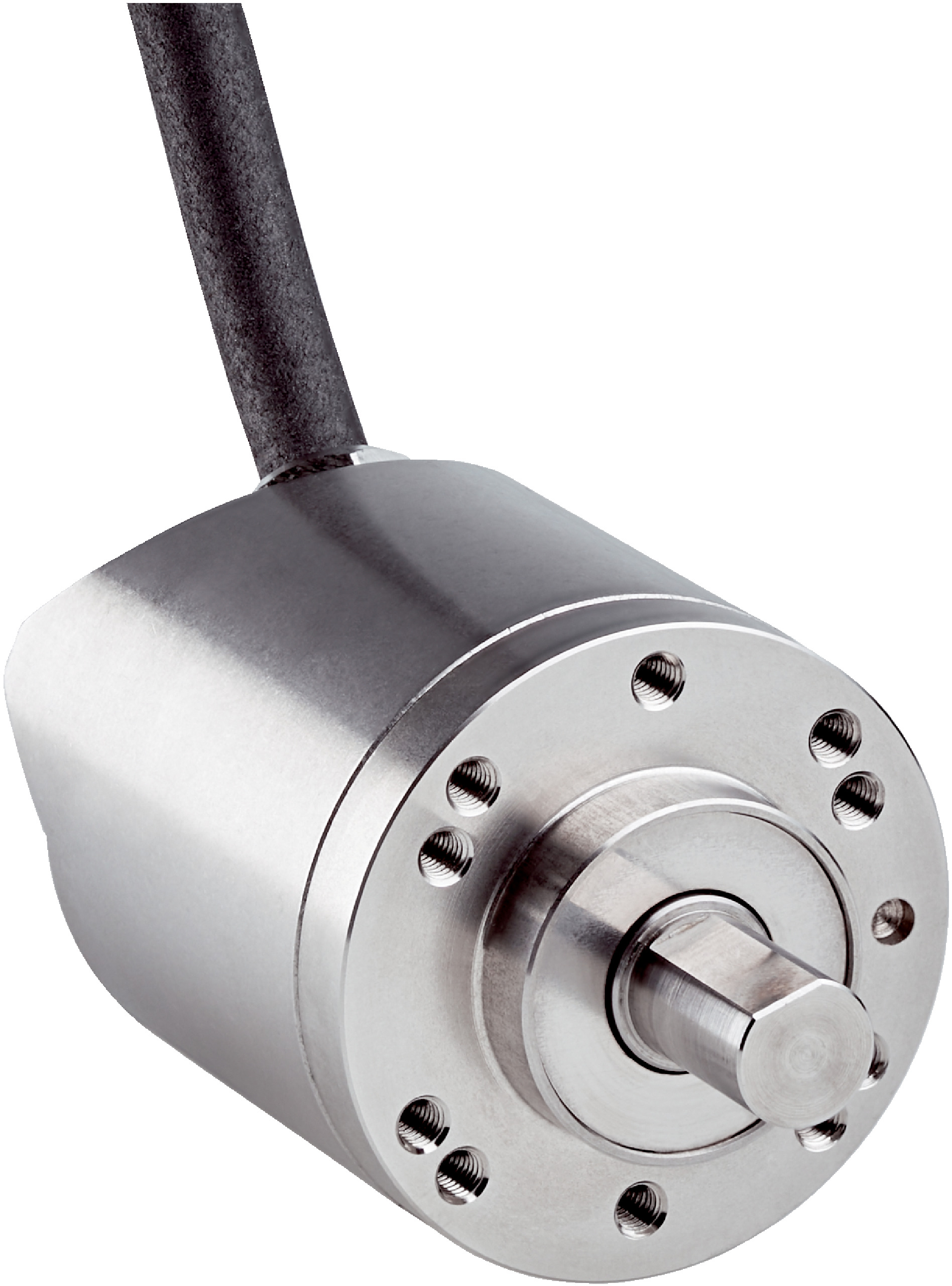

SSI Encoder AHS36I-S3PJ016384 | 16,384 Steps/Rev | IP67 & IP69K Rated | by SICK
The SSI Encoder AHS36I-S3PJ016384 offers high precision with 16,384 steps per revolution, making it ideal for industrial automation and robotics applications. Built with a robust stainless steel housing and rated IP67/IP69K, it withstands harsh environments while ensuring reliable performance. With a fast position forming time of 125 µs and a wide operating temperature range from -40 °C to +100 °C, this encoder is perfect for safety-related monitoring and control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Number of steps per revolution: 16,384 (14 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray, binary
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 6 mm with flat
- Operating torque: < 1 Ncm
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^8 revolutions
- Enclosure rating: IP67 and IP69K
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- Robust stainless steel housing and shaft
- IP67 and IP69K rated for harsh environments
- Reverse polarity protection
- Low operating torque less than 1 Ncm
- High mechanical reliability with 3.6 x 10^8 bearing lifetime revolutions
- Fast position forming time of 125 µs
- Configurable counting direction and code type (Gray, binary)
- Wide operating temperature range from -40 °C to +100 °C
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
