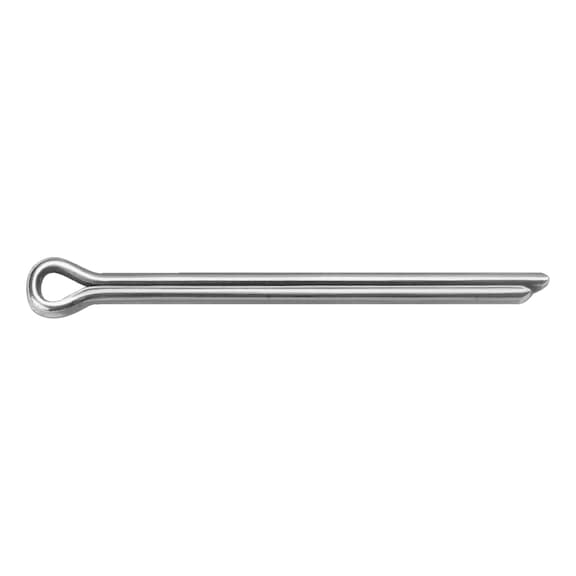

Stainless Steel A2 Split Pin | 2mm Diameter | 40mm Length | RoHS Compliant | by Wurth
The Stainless Steel A2 Split Pin is designed for securing components in mechanical assemblies, featuring a 2mm nominal diameter and 40mm length. Made from corrosion-resistant stainless steel, this pin is ideal for automotive and machinery fastening applications, ensuring durability and compliance with ISO 1234 and DIN 94 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stainless Steel A2 Split Pin | 2mm Diameter | 40mm Length | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 474240
Alternatively Known As: Split Pin, Cotter Pin, Securing Pin, Fastener Pin
Technical Specifications
- Nominal diameter (d1): 2 mm
- Length (l1): 40 mm
- Longitudinal external diameter of ring (b): 4 mm
- Transverse external diameter of ring (c): 3.2 mm
- Length between two pins of a splint (a): 2.5 mm
- Material: Stainless steel A2
- Surface: Plain
- Standards: ISO 1234, DIN 94
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.2mm x 40mm x 4mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A2 for corrosion resistance
- Plain surface finish
- RoHS-compliant ensuring environmental safety
- Conforms to ISO 1234 and DIN 94 standards
Professional Installation Requirements
- Installation by trained personnel recommended to ensure proper securing and safety.
Applications
- Securing components in mechanical assemblies
- Used in automotive, machinery, and equipment fastening
- Ideal for locking nuts, bolts, and other fasteners
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel extends product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Stainless Steel A2 Split Pin 2mm x 40mm is available for immediate purchase, ideal for securing fastener applications in industrial and mechanical settings.
