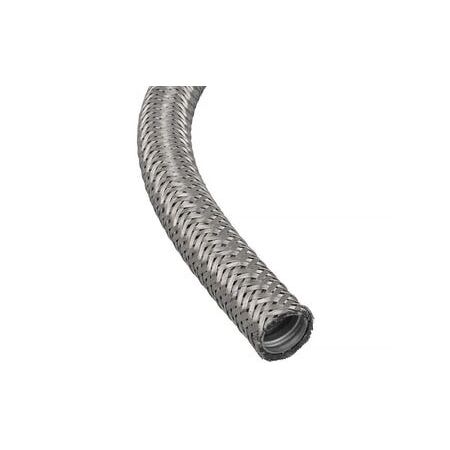

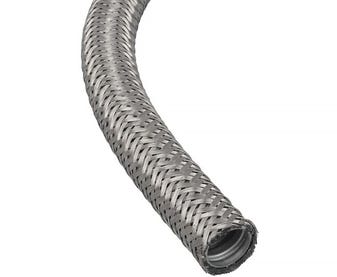

Stainless Steel Braided Conduit NC16 x 25M | High Flexibility | EMI Screening | Low Fire Hazard by Cabac
The Cabac Adaptaflex Conduit SSB with Stainless Steel 316 Core and Overbraid NC16 x 25M offers superior mechanical protection, EMI screening, and resistance to extreme temperatures with high UV resistance and inherent low fire hazard properties.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT SSB STAINLESS STEEL CORE WITH STAINLESS STEEL OVERBRAID NC16 X 25M
Brand: Cabac
SKU: SSB16/25M
Alternatively Known As: Stainless Steel Braided Conduit, SS316 Flexible Conduit, EMI Shielded Stainless Steel Conduit, High Temperature Stainless Steel Conduit
Technical Specifications
- Conduit Type: Adaptaflex Conduit SSB
- Core Material: Stainless Steel 316
- Overbraid Material: Stainless Steel 316
- EMI Screening: Standard
- Inherent Low Fire Hazard (ILFH): Yes
- Temperature Range (Static Applications): -50ºC to +300ºC
- Temperature Range (Dynamic Applications): -45ºC to +250ºC
- UV Resistance: Very High
- Flexibility: High
- Fatigue Life: High
- IP Rating: IP40
- Mechanical Protection: High flexibility and fatigue life
- Abrasion Resistance: Very High
- Finish: Braid material colour
- Application: Indoors/Outdoors - standard EMI screen - very high abrasion resistance
- Compliance: Conforms to BSI Kitemark KM-35161, Low Voltage Directive
- Dimensions (H x L x W): 16mm x 25000mm x 16mm
- Weight: 2.5 kg
Key Features
- Stainless steel 316 core and overbraid for exceptional mechanical strength and durability.
- Standard EMI screening for reliable electromagnetic interference protection.
- Inherent low fire hazard (ILFH) properties enhance installation safety.
- Wide temperature range: -50ºC to +300ºC (static) and -45ºC to +250ºC (dynamic).
- Very high UV resistance for excellent outdoor performance and longevity.
- High flexibility and fatigue life for easy installation and long-term reliability.
- IP40 rating provides protection against solid objects larger than 1mm and limited water protection.
- Conforms to BSI Kitemark KM-35161 and Low Voltage Directive.
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with electrical safety standards and optimal conduit performance.
Applications
- Oven furnaces, foundries, and welding: Protection for electrical wiring in high-temperature environments.
- Machine tools (screening): Safeguards electrical cables from EMI interference in machinery applications.
- Lighting: Reliable protection and routing of electrical cables in lighting installations.
- Rail infrastructure: Durable protection in demanding railway environments.
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Inherent low fire hazard reduces fire risk and environmental damage.
- Durable stainless steel construction extends product life, reducing waste.
- High UV resistance minimizes degradation and replacement frequency.
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Cabac Adaptaflex Stainless Steel Core and Overbraid Conduit NC16 x 25M is available for immediate purchase, ideal for high-temperature, EMI-sensitive, and outdoor electrical installations.
