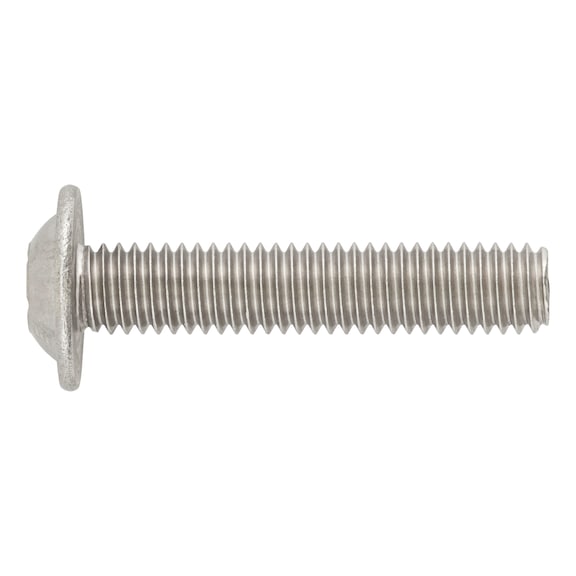

Stainless Steel Button Head Screw ISO 7380-2 | M3x5 | Hexagon Socket Drive | Corrosion Resistant | by Wurth
Stainless Steel Button Head Screw ISO 7380-2 is designed for secure fastening with its button head and hexagon socket drive. Ideal for general mechanical fastening and electronics assembly, this screw offers corrosion resistance and complies with ISO standards, making it perfect for lightweight structural applications and environments requiring stainless steel fasteners.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stainless Steel Button Head Screw ISO 7380-2 | M3x5 | Hexagon Socket Drive | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 980235
Alternatively Known As: Button head screw with collar, Hex socket screw M3x5, Stainless steel button head screw, ISO 7380-2 screw

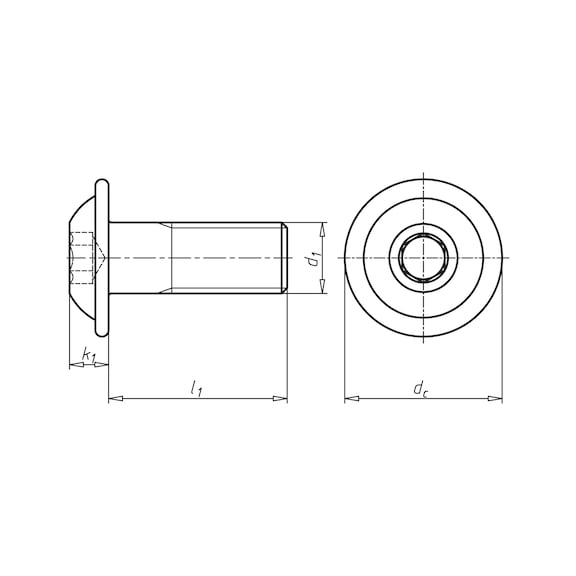

Technical Specifications
- Thread type x nominal diameter: M3
- Length: 5 mm
- Head diameter: 6.9 mm
- Head height: 1.65 mm
- Internal drive: HS2 (Hexagon socket)
- Standards: ISO 7380-2
- Material: Stainless steel A2
- Property class: 070
- Surface finish: Plain
- Head type: Button head with collar
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.65mm x 5mm x 6.9mm
- Weight: 0.002 kg
Key Features
- Button head with collar design for secure fastening
- Hexagon socket drive for easy installation with Allen keys
- Made from stainless steel A2 for corrosion resistance
- Complies with ISO 7380-2 standard
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and load application due to limited load capacity of the screw head design.
Applications
- General mechanical fastening requiring corrosion resistance
- Electronics assembly with limited load requirements
- Lightweight structural applications
- Use in environments requiring stainless steel fasteners
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Stainless steel material offers long service life reducing replacement waste
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth Stainless Steel Screw ISO 7380-2 A2 070 M3x5 Hexagon Socket is available now for immediate purchase. Ideal for mechanical fastening applications requiring corrosion resistance and limited load capacity.
