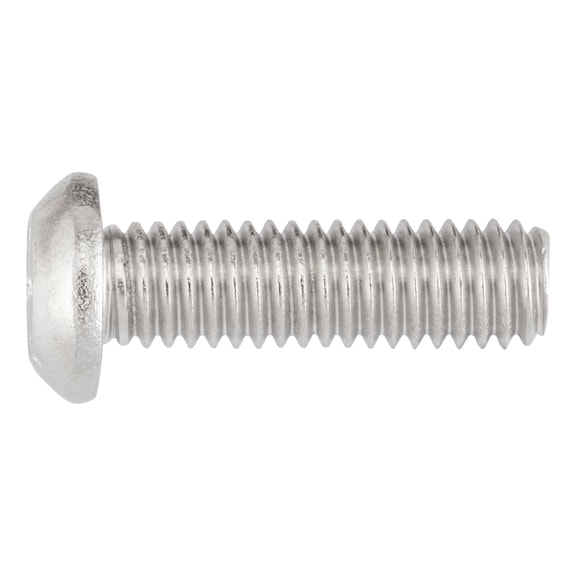

Stainless Steel Button Head Screw M3x12 | Hexagon Socket Drive | ISO 7380-1 Compliant | @Pack of 50 | by Wurth
Stainless Steel Button Head Screw M3x12 with hexagon socket drive and ISO 7380-1 compliance is perfect for general fastening applications. Designed for environments exposed to moisture or chemicals, this screw offers excellent corrosion resistance, making it ideal for light to moderate load fastening in machinery and equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stainless Steel Button Head Screw M3x12 | Hexagon Socket Drive | ISO 7380-1 Compliant | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 9901312
Alternatively Known As: Button head hex socket screw, ISO 7380-1 screw, Stainless steel button head screw M3x12

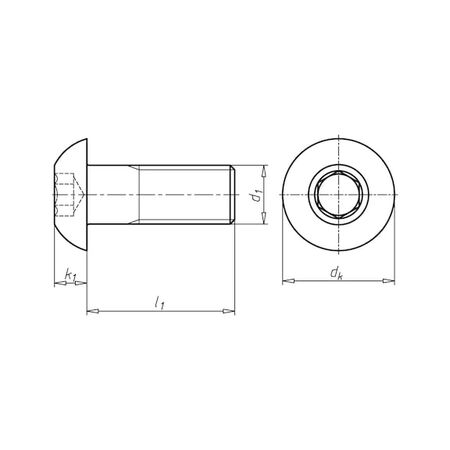

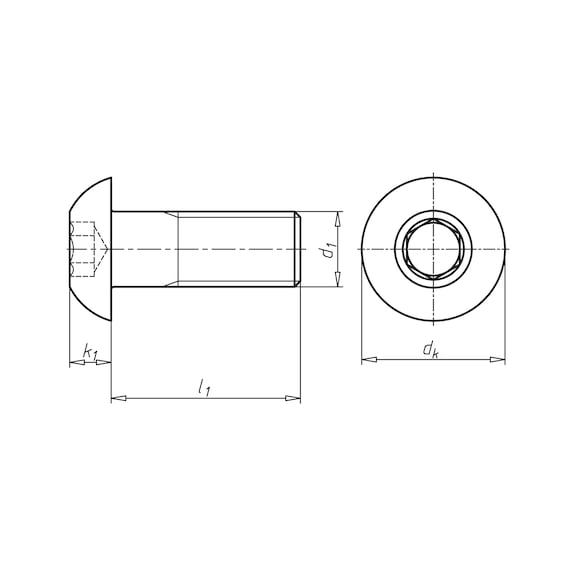

Technical Specifications
- Thread type x nominal diameter: M3
- Length: 12 mm
- Head diameter: 5.7 mm
- Head height: 1.65 mm
- Material: Stainless steel A4
- Property class: 070
- Surface finish: Plain
- Head type: Button head
- Drive type: Hexagon socket (HS2)
- Thread form: Standard metric thread
- Product class: A
- Standards: ISO 7380-1
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.65mm x 12mm x 5.7mm
- Weight: 0.005 kg
Key Features
- Button head with hexagon socket drive for secure fastening
- Made from stainless steel A4 for excellent corrosion resistance
- Complies with ISO 7380-1 standard
- RoHS-compliant material
- Limited load capacity due to head geometry as per DIN EN ISO 3506-1
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and load application.
Applications
- General fastening applications requiring corrosion-resistant screws
- Use in environments exposed to moisture or chemicals
- Suitable for light to moderate load fastening in machinery and equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Stainless steel material ensures long product life reducing waste
- RoHS-compliant, free from hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Available for immediate purchase, ideal for corrosion-resistant fastening in industrial and commercial applications.
