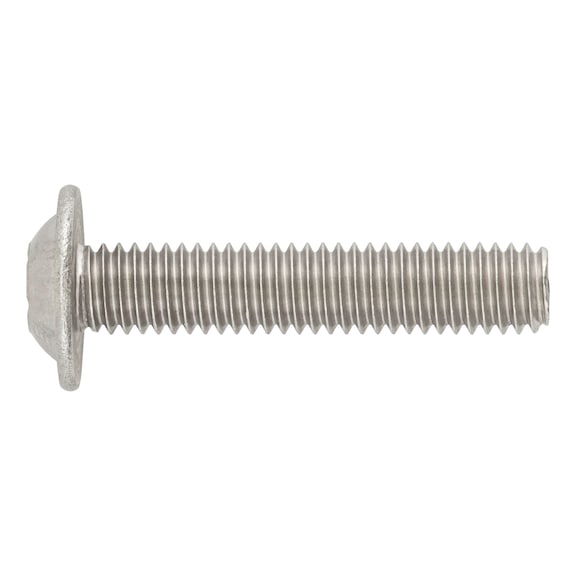

Stainless Steel Button Head Screw M3x16 | Hexagon Socket Drive | ISO 7380-2 Compliant | by Wurth
Stainless Steel Button Head Screw M3x16 features a hexagon socket drive and a button head with collar design, ensuring secure fastening for various applications. Ideal for mechanical assemblies and electronics, this screw is made from corrosion-resistant stainless steel A2 and complies with ISO 7380-2 standards, making it perfect for industrial and construction use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stainless Steel Button Head Screw M3x16 | Hexagon Socket Drive | ISO 7380-2 Compliant | by Wurth
Brand: Wurth
SKU: 9802316
Alternatively Known As: Button head screw with collar, Hex socket screw M3x16, Stainless steel button head screw
Technical Specifications
- Thread type x nominal diameter: M3
- Length: 16 mm
- Head diameter: 6.9 mm
- Head height: 1.65 mm
- Internal drive: HS2 (Hexagon socket)
- Standards: ISO 7380-2
- Material: Stainless steel A2
- Property class: 070
- Surface finish: Plain
- Head type: Button head with collar
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.65mm x 16mm x 6.9mm
- Weight: 0.005 kg
Key Features
- Button head with collar design for secure fastening
- Hexagon socket drive for easy tightening
- Made from stainless steel A2 for corrosion resistance
- Complies with ISO 7380-2 standard
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and secure fastening.
Applications
- Mechanical assemblies requiring corrosion-resistant fastening
- Electronics and electrical equipment assembly
- General industrial and construction fastening applications
Standards & Compliance
- Complies with AS/NZS 1170 for structural design actions
Environmental Benefits
- Stainless steel material offers long service life reducing replacement frequency
- RoHS compliance ensures no hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Available for immediate purchase, ideal for industrial, mechanical, and electrical fastening applications.
