Stainless Steel Button Head Screw M3x8 | Hexagon Socket | Corrosion Resistant | ISO 7380-2 Compliant | by Wurth

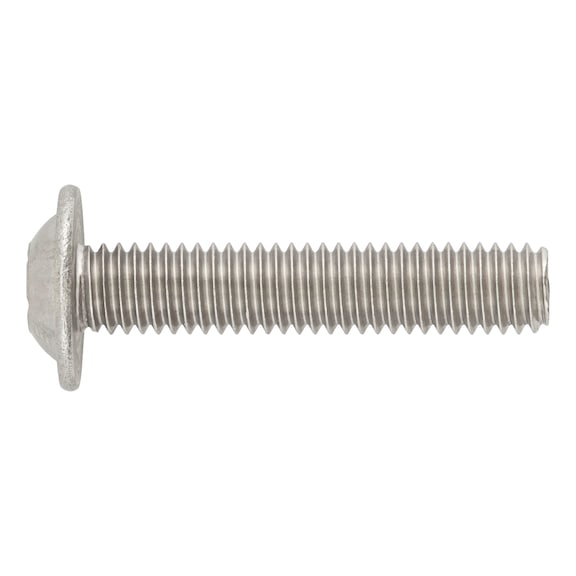

Stainless Steel Button Head Screw M3x8 features a hexagon socket drive and a button head with collar design, ensuring secure fastening for mechanical and electrical applications. Made from corrosion-resistant stainless steel A2 and compliant with ISO 7380-2 standards, this screw is perfect for environments requiring durable fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stainless Steel Button Head Screw M3x8 | Hexagon Socket | Corrosion Resistant | ISO 7380-2 Compliant | by Wurth
Brand: Wurth
SKU: 980238
Alternatively Known As: Button head screw with collar, Hex socket screw M3x8, Stainless steel button head screw, ISO 7380-2 screw

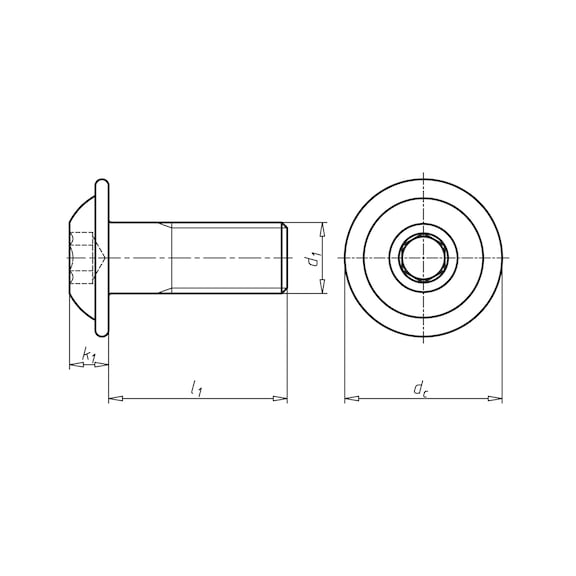

Technical Specifications
- Thread type x nominal diameter: M3
- Length: 8 mm
- Head diameter: 6.9 mm
- Head height: 1.65 mm
- Internal drive: HS2 (Hexagon socket)
- Standards: ISO 7380-2
- Material: Stainless steel A2
- Property class: 070
- Surface finish: Plain
- Head type: Button head with collar
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.65mm x 8mm x 6.9mm
- Weight: 0.002 kg
Key Features
- Button head with collar design for secure fastening
- Hexagon socket drive for easy installation with Allen keys
- Made from stainless steel A2 for corrosion resistance
- Complies with ISO 7380-2 standard
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or engineer recommended to ensure correct torque and application.
Applications
- Mechanical assemblies requiring corrosion-resistant fastening
- Electronics and electrical equipment assembly
- General purpose fastening in machinery and equipment
- Use in environments requiring stainless steel fasteners
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Stainless steel material ensures long service life reducing replacement waste
- RoHS-compliant, free from hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Available for immediate purchase, ideal for mechanical and electrical fastening applications requiring corrosion resistance.
