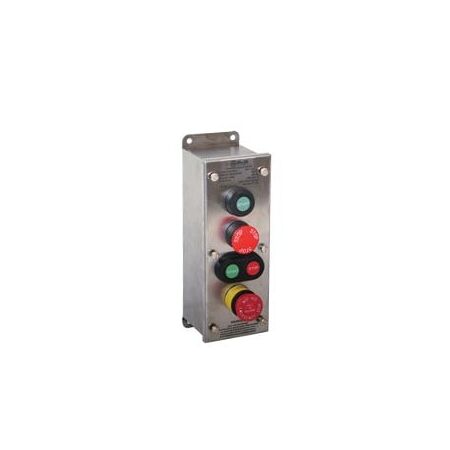

Stainless Steel Control Station | 159x90x90mm | 2xPB GN RD | IP66 by B&R Enclosures
Stainless steel control station with 159x90x90mm dimensions and dual push buttons—ideal for hazardous environments. Built for chemical, petrochemical, and marine applications, with IP66 protection and certified control operators.
Sign in
Please login to continue to your account.
Product Name/Title: Ctrl Stn SS 159x90x90 2xPB GN RD TBS/CBS
Brand: B&R Enclosures
SKU: CSS2PGPR
Alternatively Known As: 316 Stainless Steel Control Station, Hazardous Area Control Station, IP66 Control Station
- Manufactured from 1.5mm 316 stainless steel with N4 surface finish.
- Protection Ratings: Ex e IIC T6 Gb, Ex nA IIC T6 Gb, Ex de IIC T6 Gb, Ex tD A21/22 T80ºC, DIP A21/22 Ta80ºC, Ex t IIIC T80ºC Db.
- Ambient Temperature: -20ºC up to +40ºC / 55ºC option.
- IECEx Certificate: IECEx ITA 10.0023X.
- Dimensions (H x L x W): 135mm x 70mm x 80mm
- Weight: 2.0 kg
- Suitable for use within chemical, petrochemical, dust and grain applications where a small enclosure is required.
- Available pre-configured or customer built for ease of installation from one to six operators.
- Specially designed gutter system to protect equipment.
- Certified control operators.
- Gasket material EDPM black.
- Silicon gasket available on request for IP65 and IP66 only.
- Stainless steel cover fixings.
- Customised etched certification and identification label.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Offshore
- Mining
- Metal refining
- Marine
- Oil & gas
- Petrochemical
- Manufacturing
- Complies with AS/NZS 60035 for electrical equipment in explosive atmospheres.
- Durable stainless steel construction reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Fixed Lid Control Station is available now for immediate purchase. Ideal for use in hazardous environments across various industries.
