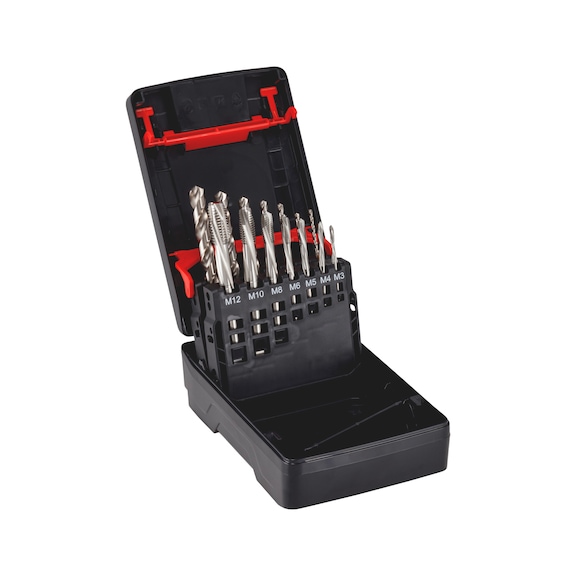

Stainless Steel Drill and Tap Set | 14 PCS | Precision Twist Drill & Machine Tap | High Alloy Steel | by Wurth
The Stainless Steel Drill and Tap Set is designed for precision machining of alloyed and high-alloyed steels, including stainless steel. With 14 pieces featuring advanced twist drill bits and machine taps, this set ensures quick drilling and optimal chip removal. Ideal for professional machinists, it offers a longer service life and is suitable for use in milling/drill centers and pedestal drilling machines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Stainless Steel Drill and Tap Set | 14 PCS | Precision Twist Drill & Machine Tap | High Alloy Steel | by Wurth
Brand: Wurth
SKU: 655700014
Alternatively Known As: Stainless Steel Drill and Tap Set, Precision Twist Drill and Machine Tap Kit, High Alloy Steel Machining Set
Technical Specifications
- Number of pieces: 14 PCS
- Material to be processed: Steel, Stainless steel
- Quality: ZEBRA-Premium
- Hole type: Clearance hole – 3xD
- Cutting material: HSCo
- Surface finish: Plain
- Suitable machine types: Milling/drill center, Pedestal drilling machine
- Suitable for tensile strength up to: 1000 N/mm²
- Thread type: Metric thread
- Service life rating: 3 of 4 points
- Trueness to gauge rating: 4 of 4 points
- Versatility rating: 3 of 4 points
- Cutting behaviour rating: 3 of 4 points
- Chip formation rating: 3 of 4 points
- Material sub-groups: Stainless steels (sulphurated, austenitic, martensitic)
- Dimensions (H x L x W): 50mm x 350mm x 250mm
- Weight: 1.2 kg
Key Features
- Twist drill bits with large chip spaces and small core for quick drilling and perfect chip removal
- Very precise point geometry ideal for accurate and core drill holes
- Machine taps with newly developed geometry combining left-hand spiral and spiral entry
- Homogenised surface structure due to latest finishing process
- Extra-long groove for optimized coolant supply for deep threads
- Up to 50% longer service life than conventional plain machine taps
- Rake geometry precisely tailored to stainless steel
- Suitable for ORSY system cassette with stackability and simple opening
Professional Installation Requirements
- Use by trained professionals or machinists recommended to ensure proper handling and optimal performance.
Applications
- Machining alloyed and high-alloyed steels including stainless steels
- Suitable for rust-resistant and acid-resistant steels
- Machining conventional steel materials up to 1000 N/mm² strength
- Use in milling/drill centers and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable tools reduce frequency of replacement, minimizing waste
- Optimized coolant supply reduces coolant consumption and environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Precision Twist Drill and Machine Tap Set is available for immediate purchase, ideal for professional machining of stainless and alloyed steels.
