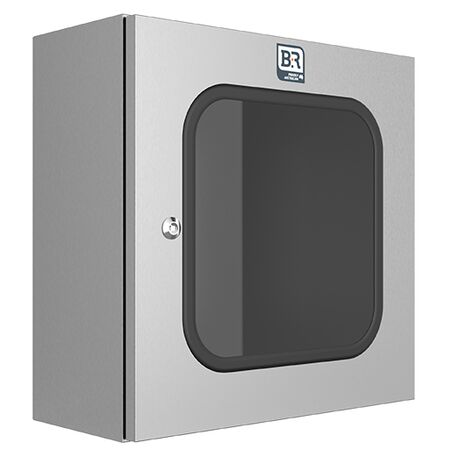

Stainless Steel Enclosure with Glass Viewing Window | IP66 Rated | 1600Hx800Wx500D by B&R Enclosures

SKU: IP61295/S/WG
$11,972.50 List price: $15,048.10
Free pick up (over 25 kg)
For delivery quote message
Stainless steel enclosure with IP66 protection and glass viewing window—ideal for industrial and commercial applications. Built for durability with 316 stainless steel and 3-point locking for secure access.

Product Name/Title: Monarch IP 1600Hx800Wx500D IP66 SS N4 VW Glass

Brand: B&R Enclosures

SKU: IP61295/S/WG

Alternatively Known As: Monarch IP Viewing Window, Stainless Steel Enclosure, IP66 Enclosure

Technical Specifications
  • Material: 1.2/1.5mm thick 316 stainless steel
  • Gland plate: 1.5mm 316 stainless steel (brass option available)
  • Region D wind rated to AS1170.2-2002
  • Concealed removable hinging
  • Ripple Orange – X15 finish
  • Dimensions (H x L x W): 800mm x 500mm x 1600mm
  • Weight: 50 kg
Key Features
  • IP66 protection rating
  • Glass Viewing Window
  • 3 point locking on models of 600mm high and above
  • Stainless steel hinges and hinge pins for easy door opening
  • Polyurethane gasket (foamed in place)
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Small motor control applications
  • Commercial: Lighting and CT metering
  • General: Small switchboards
Standards & Compliance
  • Complies with AS/NZS 61439 for industrial enclosures.
Environmental Benefits
  • Durable stainless steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Monarch IP – Viewing Window (SS) is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust and flexible enclosures.

Specification Sheet (, 440 Kb) [Download]

Specification Sheet (, 439 Kb) [Download]
