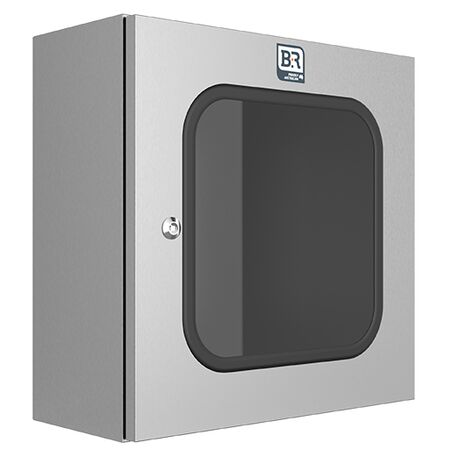

Stainless Steel Enclosure with Glass Window | IP66 Rated | 1200Hx800Wx500D by B&R Enclosures
Stainless steel enclosure with IP66 protection and glass viewing window—ideal for industrial motor control and commercial lighting applications. Built for durability with 316 stainless steel and C rail mountings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protection Rating: IP66
- Material: 1.2/1.5mm thick 316 stainless steel
- Viewing Window Thickness: 5.4mm
- Wind Rating: Region D wind rated to AS1170.2-2002
- Dimensions (H x L x W): 800mm x 500mm x 1200mm
- Weight: 50 kg
Key Features
- IP66 protection rating
- C rail mountings for equipment
- Gland plate fitted internally or externally on units 400mm or above
- Vertical body and door rails
- 3 point locking on models of 600mm high and above
- Lockable L handle on enclosures 1600mm high and above
- Glass Viewing Window
- 1.2/1.5mm thick 316 stainless steel
- Stainless steel hinges and hinge pins for easy door opening
- Polyurethane gasket (foamed in place)
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Motor control applications
- Commercial: Lighting and CT metering
- General: Small switchboards
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable stainless steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Monarch IP – Viewing Window (SS) is available now for immediate purchase. Ideal for industrial and commercial applications.
