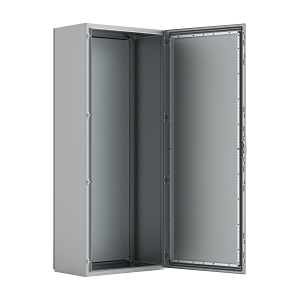

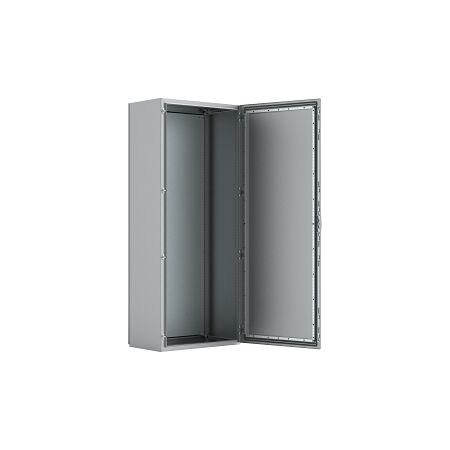

Stainless Steel Floor Standing Enclosure | IP66 | 1800x1000x400mm | Brushed Finish by NHP

BRAND: NHP
SKU: EKSS18104316
$10,795.10 List price: $14,334.50
Free pick up (over 25 kg)
For delivery quote message
Stainless steel floor standing enclosure with IP66 protection and 1800x1000x400mm dimensions—ideal for industrial and commercial setups. Built for durability with a brushed finish and adjustable mounting plate for versatile installation.

Product Name/Title: nVent HOFFMAN EKSS Enclosure Floor Standing 316 Stainless Steel IP66 H1800 X W1000 X D400mm

Brand: NHP

SKU: EKSS18104316

Alternatively Known As: 316 Stainless Steel Enclosure, Floor Standing Enclosure, IP66 Enclosure

Technical Specifications
  • Material: Stainless steel V4A
  • Surface finishing: Brushed/grinded
  • Door load capacity: 61 kg
  • Material thickness: 1.5 mm
  • Degree of protection: IP66, NEMA 4X
  • Type of lock: DIN 1/4 turn
  • Impact strength: IK10
  • Number of doors: 1
  • Number of locks: 1
  • Gland plates included: Yes
  • With mounting plate: Yes
  • Suitable for outdoor setup: Yes
  • Dimensions (H x L x W): 1800mm x 400mm x 1000mm
  • Weight: 138 kg
Key Features
  • Constructed from high-quality stainless steel V4A for durability.
  • IP66 rated for protection against dust and water ingress.
  • Load capacity of 611 kg for robust applications.
  • Adjustable mounting plate for versatile installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for outdoor setups and harsh environments.
  • Commercial: Ideal for housing electrical and electronic equipment.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The nVent HOFFMAN EKSS Enclosure is available now for immediate purchase, ideal for industrial and commercial applications.

EKSS18104316-AU-Enclosure-Datasheet.pdf (EKSS18104316-AU-Enclosure-Datasheet.pdf, 968 Kb) [Download]
