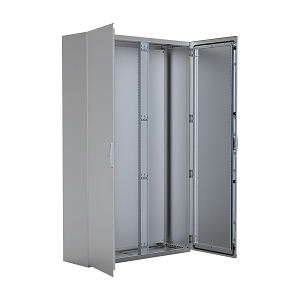

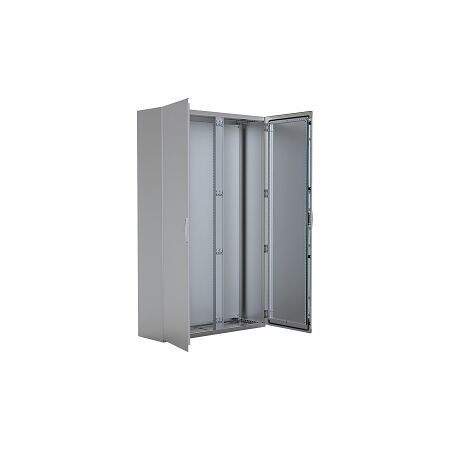

Stainless Steel Floor Standing Enclosure | IP66 | 2000x1600x400mm | Brushed Finish by NHP

BRAND: NHP
SKU: EKDS201644X316
$17,590.70 List price: $23,358.20
Free pick up (over 25 kg)
For delivery quote message
Stainless steel floor standing enclosure with IP66 protection and 2000x1600x400mm dimensions—ideal for industrial and commercial setups. Built for durability with a brushed finish, adjustable mounting plate, and high load capacity.

Product Name/Title: nVent HOFFMAN EKDS Enclosure Floor Standing 316 Stainless Steel IP66 H2000 x W1600 x D400mm

Brand: NHP

SKU: EKDS201644X316

Alternatively Known As: 316 Stainless Steel Enclosure, Floor Standing Enclosure, IP66 Enclosure

Technical Specifications
  • Material: Stainless steel V4A
  • Surface Finishing: Brushed/grinded
  • Material Thickness: 1.5 mm
  • Degree of Protection: IP66
  • Impact Strength: IK10
  • Number of Doors: 2
  • Number of Locks: 1
  • Type of Lock: DIN 1/4 turn
  • Gland Plates Included: Yes
  • With Mounting Plate: Yes
  • Mounting Plate Depth Adjustable: Yes
  • Dimensions (H x L x W): 2000mm x 400mm x 1600mm
  • Weight: 216.4 kg
Key Features
  • Constructed from high-quality stainless steel V4A for durability.
  • IP66 rating ensures protection against dust and water ingress.
  • Load capacity of 611 kg for robust applications.
  • Adjustable mounting plate depth for versatile installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for outdoor setups and harsh environments.
  • Commercial: Ideal for housing electrical and electronic equipment.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable stainless steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The nVent HOFFMAN EKDS Enclosure is available now for immediate purchase, ideal for industrial and commercial applications.

EKDS201644X316-AU-Enclosure-Datasheet.pdf (EKDS201644X316-AU-Enclosure-Datasheet.pdf, 954 Kb) [Download]
