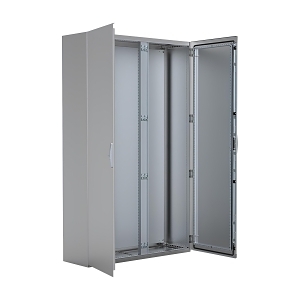

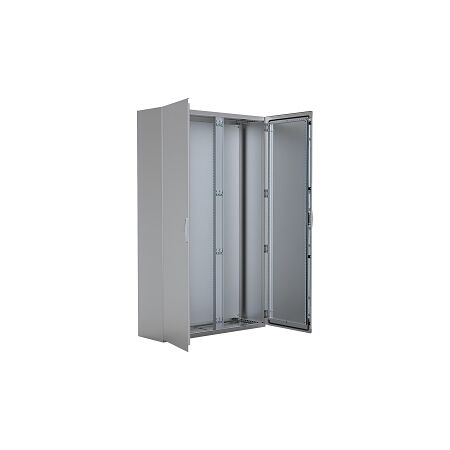

Stainless Steel Floor Standing Enclosure | IP66 | H1800 x W1200 x D400mm | Brushed Finish by NHP

BRAND: NHP
SKU: EKDS181244X316
$14,769.40 List price: $19,611.80
Free pick up (over 25 kg)
For delivery quote message
Stainless steel floor standing enclosure with IP66 rating and dimensions of H1800 x W1200 x D400mm—ideal for industrial and commercial setups. Built for durability with high-quality V4A stainless steel and brushed finish, offering robust protection against dust and water ingress.

Product Name/Title: nVent HOFFMAN EKDS Enclosure Floor Standing 316 Stainless Steel IP66 H1800 x W1200 x D400mm

Brand: NHP

SKU: EKDS181244X316

Alternatively Known As: 316 Stainless Steel Enclosure, Floor Standing Enclosure, IP66 Enclosure

Technical Specifications
  • Material: Stainless steel V4A
  • Surface Finishing: Brushed/grinded
  • Material Thickness: 1.5 mm
  • Door Load Capacity: 61 kg
  • Impact Strength: IK10
  • Number of Doors: 2
  • Type of Lock: DIN 1/4 turn
  • Lock Material: Stainless steel
  • Dimensions (H x L x W): 1800mm x 400mm x 1200mm
  • Weight: 151.9 kg
Key Features
  • Constructed from high-quality stainless steel V4A for durability.
  • IP66 rated for protection against dust and water ingress.
  • Load capacity of 611 kg for robust applications.
  • Includes adjustable mounting plate and gland plates.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for outdoor setups and harsh environments.
  • Commercial: Ideal for housing electrical and electronic equipment.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

Standard warranty of 1 year against manufacturing defects.

Available Now

The nVent HOFFMAN EKDS Enclosure is available now for immediate purchase, perfect for industrial and commercial applications.

EKDS181244X316-AU-Enclosure-Datasheet.pdf (EKDS181244X316-AU-Enclosure-Datasheet.pdf, 955 Kb) [Download]
