Stainless Steel Floor Standing Enclosure | IP66 | H2000 x W1200 x D400mm | Brushed Finish by NHP

BRAND: NHP
SKU: EKDS201244X316
$16,281.90 List price: $21,620.30
Free pick up (over 25 kg)
For delivery quote message

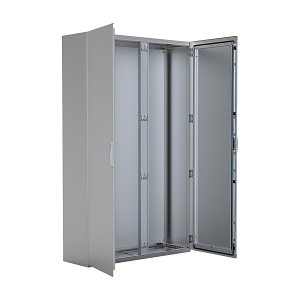

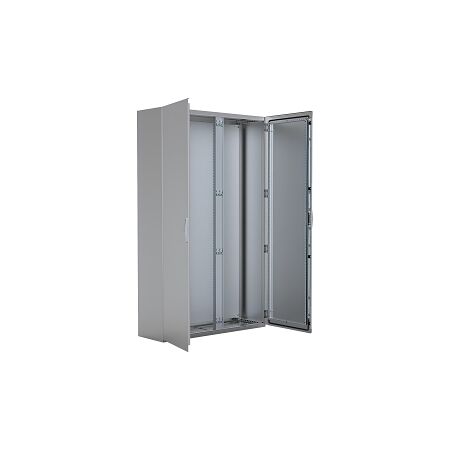

Stainless steel floor standing enclosure with IP66 rating and dimensions of H2000 x W1200 x D400mm—ideal for industrial and commercial setups. Built for durability with high-quality V4A stainless steel and brushed finish, offering protection against dust and water ingress.

Product Name/Title: nVent HOFFMAN EKDS Enclosure Floor Standing 316 Stainless Steel IP66 H2000 x W1200 x D400mm

Brand: NHP

SKU: EKDS201244X316

Alternatively Known As: 316 Stainless Steel Enclosure, Floor Standing Enclosure, IP66 Enclosure

Technical Specifications
  • Material: Stainless steel V4A
  • Surface finishing: Brushed/grinded
  • Material thickness: 1.5 mm
  • Type of lock: DIN 1/4 turn
  • Lock material: Stainless steel
  • Gland plates included: Yes
  • With mounting plate: Yes
  • Mounting plate depth adjustable: Yes
  • Number of doors: 2
  • Number of locks: 1
  • Impact strength: IK10
  • Dimensions (H x L x W): 2000mm x 400mm x 1200mm
  • Weight: 166.8 kg
Key Features
  • Constructed from high-quality stainless steel V4A for durability.
  • IP66 rated for protection against dust and water ingress.
  • Load capacity of 611 kg for the enclosure and 61 kg for the door.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for outdoor setups and harsh environments.
  • Commercial: Ideal for housing electrical and electronic equipment.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The nVent HOFFMAN EKDS Enclosure is available now for immediate purchase, ideal for industrial and commercial applications.

EKDS201244X316-AU-Enclosure-Datasheet.pdf (EKDS201244X316-AU-Enclosure-Datasheet.pdf, 955 Kb) [Download]
