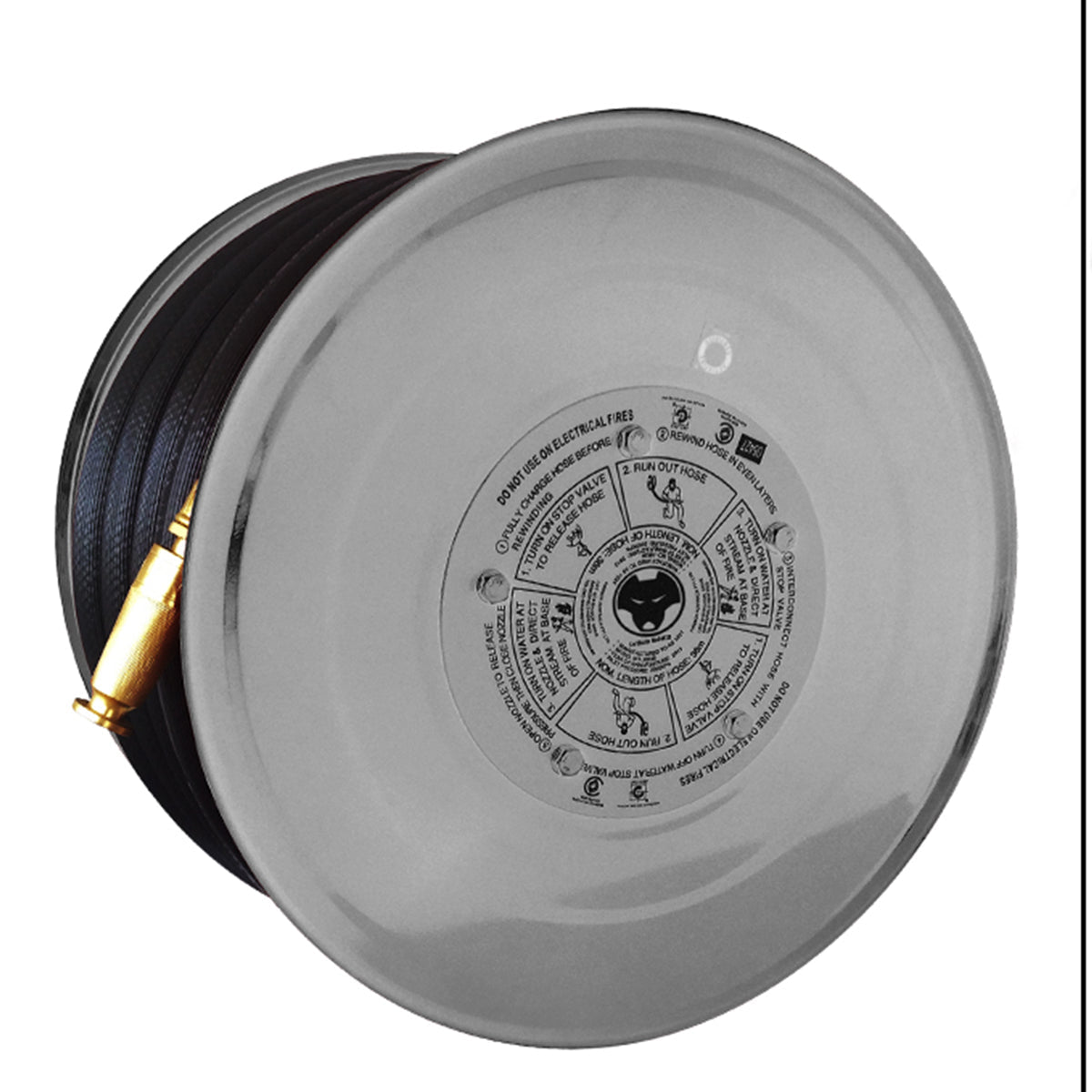

Stainless Steel Fire Hose Reel 36m x 19mm | Wall Mounted | 1.4 MPa Max Pressure | Durable Design by Firebox

BRAND: Firebox
SKU: HR36SS-WF
$611.10 List price: $739.60
Free pick up (over 25 kg)
For delivery quote message
Ensure fire safety with this stainless steel fire hose reel, featuring a 36m length and 19mm diameter—ideal for commercial and industrial applications. Built for reliability, it offers a maximum working pressure of 1.4 MPa and is constructed from durable stainless steel for long-lasting performance.

Product Name/Title: Stainless Steel Fire Hose Reel 36m x 19mm | Wall Mounted | 1.4 MPa Max Pressure | Durable Design by Firebox

Brand: Firebox

SKU: HR36SS-WF

Alternatively Known As: Stainless Steel Fire Hose Reel 36m, 19mm Fire Hose Reel, Wall Mounted Fire Hose Reel

Technical Specifications
  • Model Number: HR36SS-WF
  • Approvals: AS/NZ 1221
  • Certification: Global-Mark ID 109076
  • Plate Diameter: 460mm
  • Back Plate to Wall: 265mm
  • Carton Dimensions: 520 x 280 x 475mm
  • Gross Mass: 26kg
  • Pallet Quantity: 16
  • Drum Material: Stainless steel 304
  • Waterway Construction: Stainless steel 304
  • Inlet Pipe/Union Construction: Stainless steel 304
  • Maximum Working Pressure: 1.4 MPa
  • Hydraulic Test Pressure: 2.0 MPa
  • Mounting Plate Construction and Finish: Stainless steel 304
  • Union: Stainless steel 304
  • Hose Guide: Stainless steel 304
  • Interlock: Stainless steel 304
  • Ball Valve: Brass body with stainless steel stopper ball
  • Nozzle Construction: Brass
  • Gooseneck Construction: Reinforced nylon
  • Hose Length & Diameter: 36m x 19mm
  • Dimensions (H x L x W): 265mm x 520mm x 460mm
  • Weight: 26 kg
Key Features
  • Standard wall mounted fire hose reel
  • Constructed with stainless steel 304 for drum, waterway, inlet pipe/union, mounting plate, hose guide, and interlock
  • Brass body ball valve with stainless steel stopper ball
  • Brass nozzle construction
  • Reinforced nylon gooseneck
  • Maximum working pressure of 1.4 MPa
  • Hydraulic test pressure of 2.0 MPa
  • 36 metres hose length with 19mm diameter
Professional Installation Requirements
  • Professional installation by certified fire safety technicians is recommended to ensure compliance with fire safety regulations and optimal performance.
Applications
  • Fire safety in commercial and industrial buildings
  • Emergency fire hose deployment in warehouses and factories
  • Fire protection in public and residential buildings
Standards & Compliance
  • Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
  • Durable stainless steel construction reduces need for frequent replacements, minimizing waste.
  • Corrosion-resistant materials extend product life, reducing environmental impact.
Warranty Information

12 months warranty.

Available Now

The Firebox 36m x 19mm Stainless Steel Hose Reel is available for immediate purchase, ideal for commercial, industrial, and residential fire safety applications.
